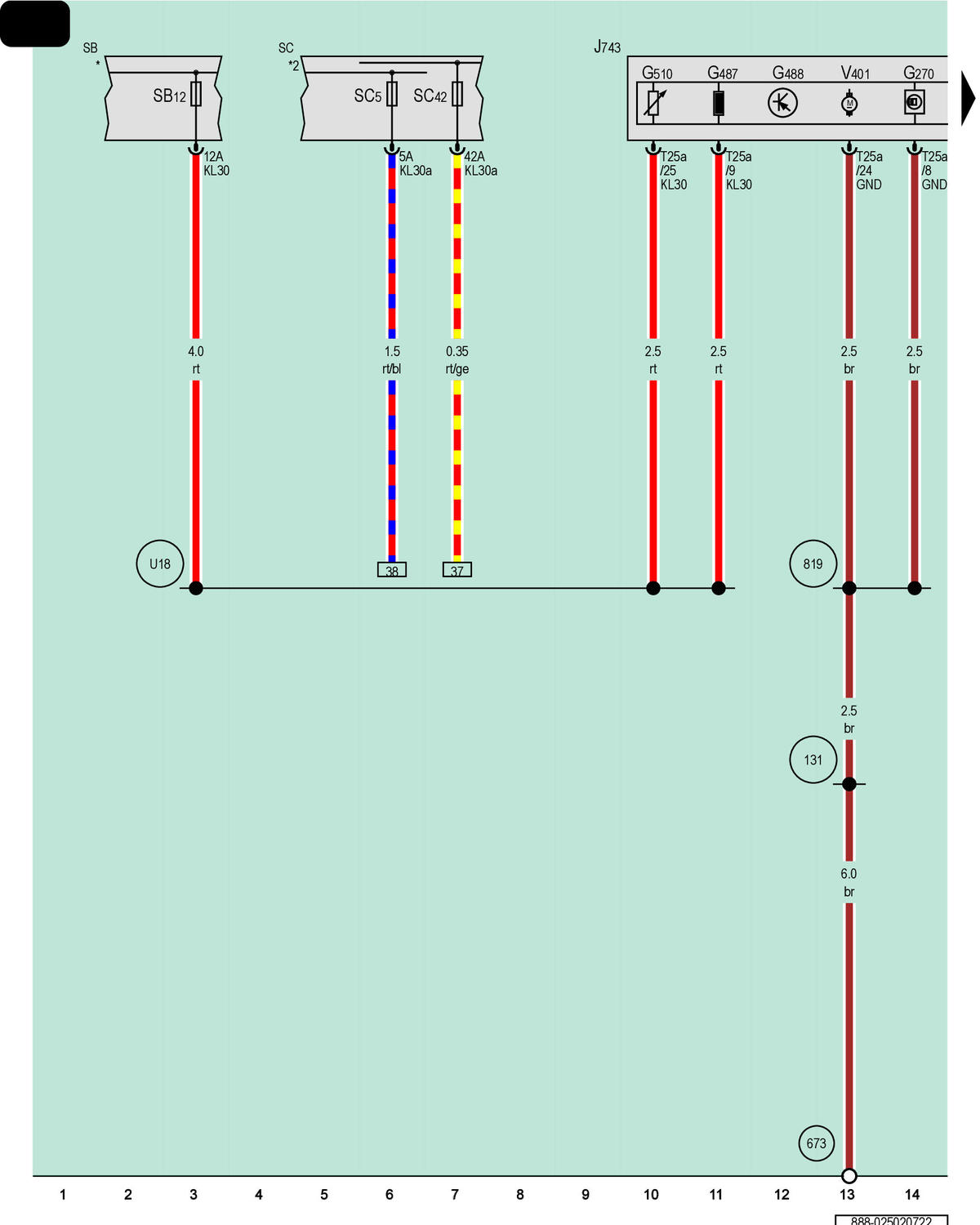

Dual-Clutch Transmission MECHATRONIC, Fuse Panel B, Fuse Panel C
G270
Transmission Hydraulic Pressure Sensor
G487
Gear Position Distance Sensor 1
G488
Gear Position Distance Sensor 2
G510
Temperature Sensor in Control Module
J743
Dual-Clutch Transmission Mechatronic
SB
Fuse Panel B
SB12
Fuse 12 (On Fuse Panel B)
SC
Fuse Panel C
SC5
Fuse 5 (On Fuse Panel C)
SC42
Fuse 42 (On Fuse Panel C)
T25a
25-Pin Connector, Black
V401
Hydraulic Pump Motor
131
Ground Connection 2 (in Engine/Motor Compartment Wiring Harness)
673
Ground Connection 3 on Left Front Longitudinal Member
819
Ground Connection 12 (in Engine/Motor Compartment Wiring Harness)
U18
Positive Connection (30a) (in Automatic Transmission Wiring Harness)
*
Refer to Applicable Wiring Diagram for Fuses in Engine/Motor Compartment
*2
Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
