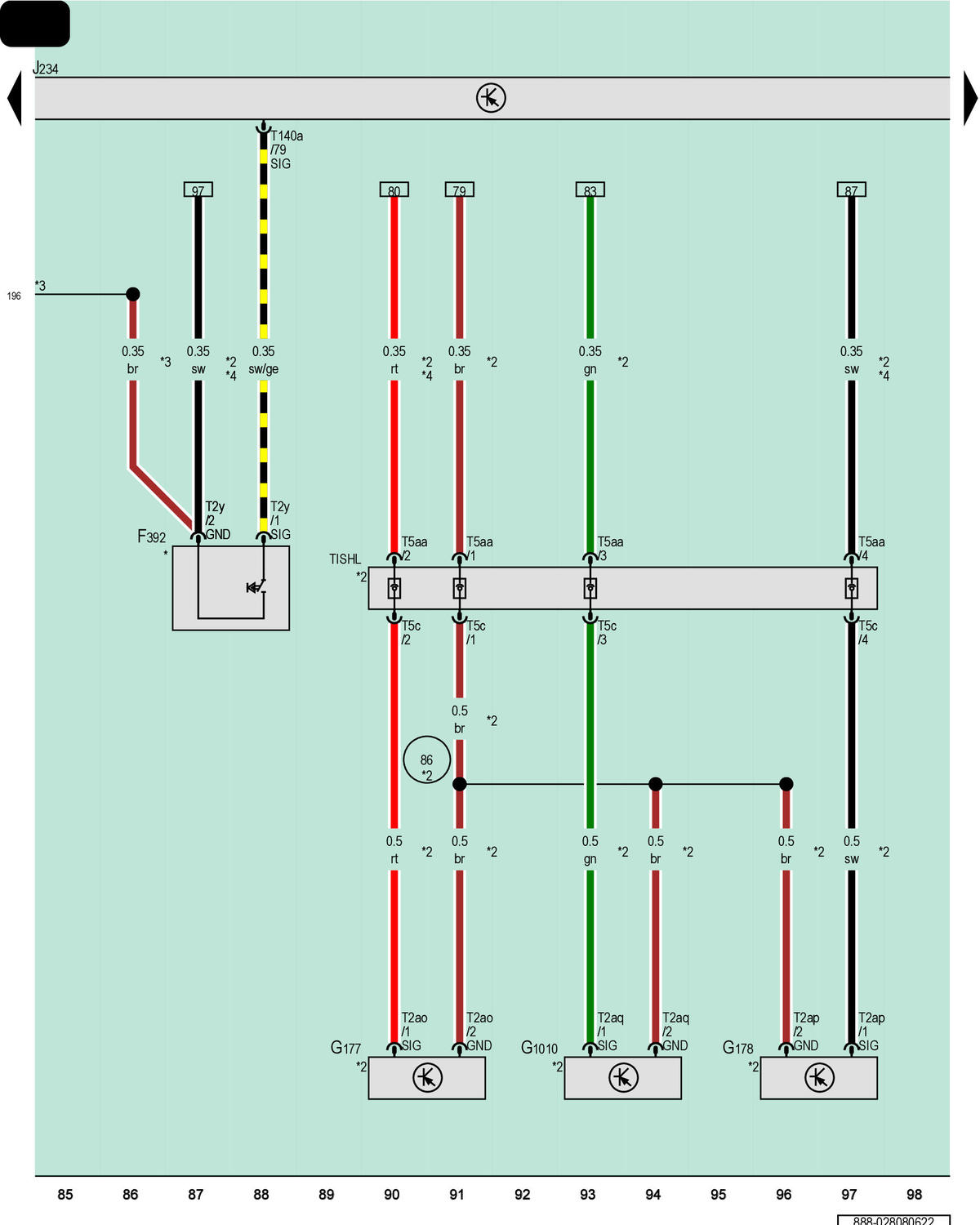

Passenger Side Second Row Seat Belt Switch, Driver Side Rear Seat Occupant Detection Sensor, Passenger Side Rear Seat Occupant Detection Sensor, Rear Center Seat Occupant Detection Sensor, Airbag Control Module

Courtesy of AUDI OF AMERICA, LLC

F392

Passenger Side Second Row Seat Belt Switch

G177

Driver Side Rear Seat Occupant Detection Sensor

G178

Passenger Side Rear Seat Occupant Detection Sensor

G1010

Rear Center Seat Occupant Detection Sensor

J234

Airbag Control Module

T2ao

2-Pin Connector, White

T2ap

2-Pin Connector, White

T2aq

2-Pin Connector, White

T2y

2-Pin Connector, Black

T5aa

5-Pin Connector, Black

T5c

5-Pin Connector, Black

T140a

140-Pin Connector, Yellow

TISHL

Coupling Point in Left Rear Seat

86

Ground Connection 1 (in Rear Wiring Harness)

196

Ground Connection 3 (in Rear Wiring Harness)

*

Pre-Wired Component

*2

For Vehicles with a Seat Occupant Detection System

*3

For Vehicles Without Seat Occupant Detection System

*4

Different Wire Color Possible
