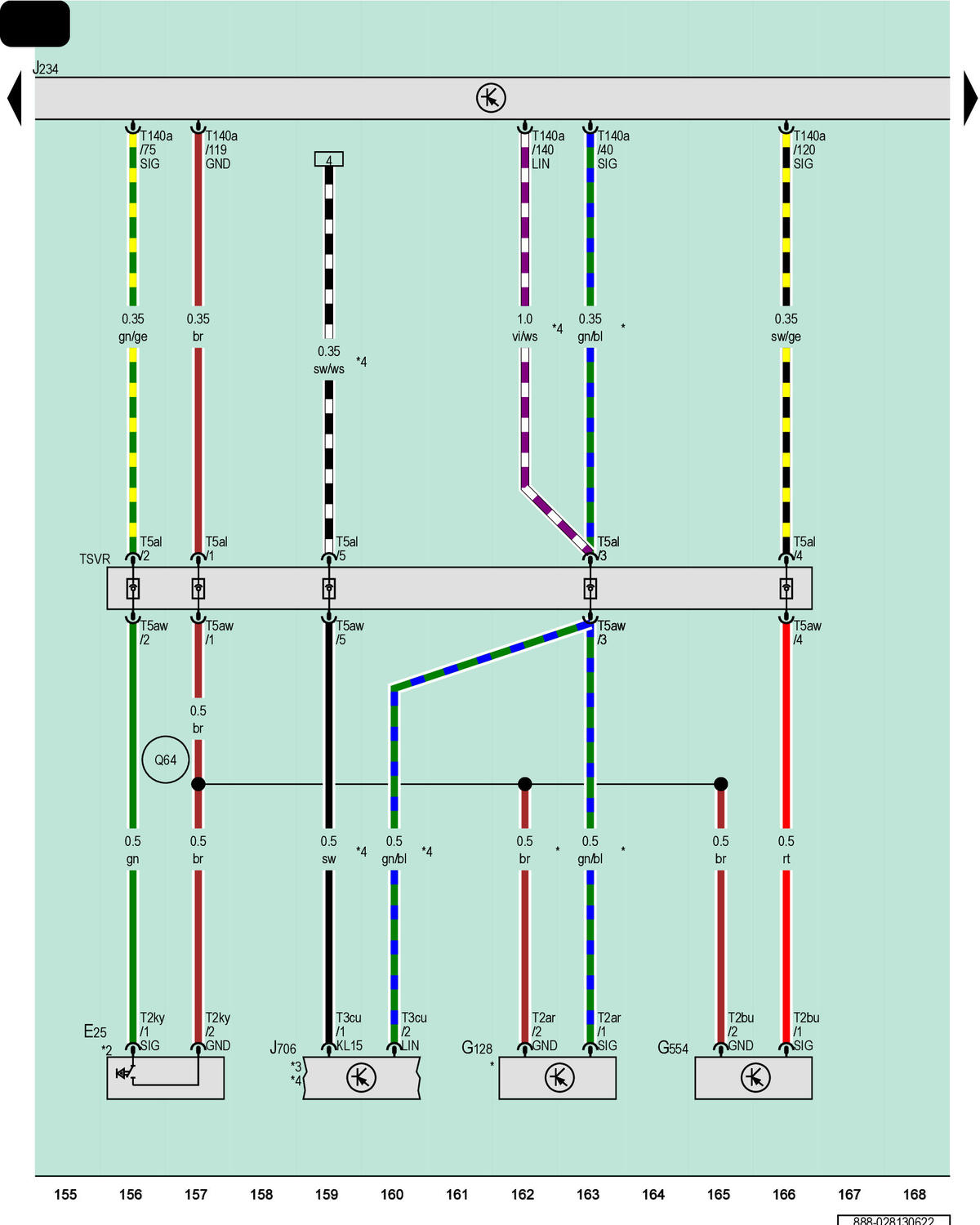

Front Passenger Seat Belt Switch, Passenger Seat Occupant Detection Sensor, Front Passenger Seat Position Sensor, Airbag Control Module, Seat Occupant Detection System Control Module
E25
Front Passenger Seat Belt Switch
G128
Passenger Seat Occupant Detection Sensor
G554
Front Passenger Seat Position Sensor
J234
Airbag Control Module
J706
Seat Occupant Detection System Control Module
T2ar
2-Pin Connector, White
T2bu
2-Pin Connector, Black
T2ky
2-Pin Connector, Black
T3cu
3-Pin Connector, Black
T5al
5-Pin Connector, Black
T5aw
5-Pin Connector, Black
T140a
140-Pin Connector, Yellow
TSVR
Right Front Seat Coupling Station
Q64
Connection (in Seat Belt Tensioner Wiring Harness)
*
For Vehicles Without US Equipment
*2
Pre-Wired Component
*3
Refer to the Applicable Heated Seats Wiring Diagram
*4
For Vehicles with US Equipment
