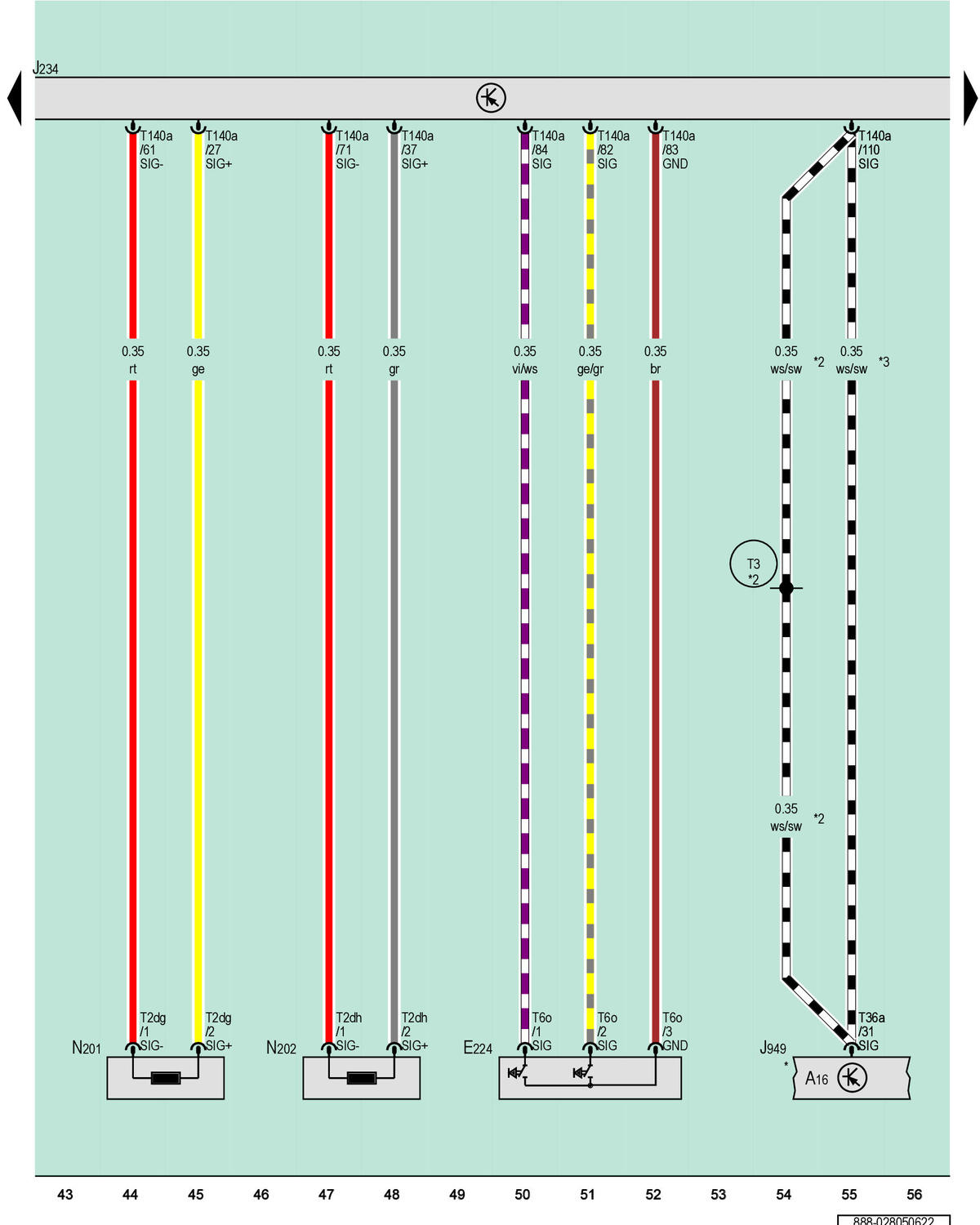

Front Passenger Airbag Deactivation Key Switch, Airbag Control Module, Control Module For Emergency Call Module And Communication Unit, Driver Side Rear Thorax Airbag Igniter, Passenger Side Rear Thorax Airbag Igniter

Courtesy of AUDI OF AMERICA, LLC

A16

Telematics Emergency Battery

E224

Front Passenger Airbag Deactivation Key Switch

J234

Airbag Control Module

J949

Control Module for Emergency Call Module and Communication Unit

N201

Driver Side Rear Thorax Airbag Igniter

N202

Passenger Side Rear Thorax Airbag Igniter

T2dg

2-Pin Connector, Yellow

T2dh

2-Pin Connector, Yellow

T6o

6-Pin Connector, Yellow

T36a

36-Pin Connector, Black

T140a

140-Pin Connector, Yellow

T3

Connection (in Airbag Wiring Harness)

*

Refer to Applicable Emergency Call Module Wiring Diagram

*2

Driver Seat Without Memory Function

*3

Driver Memory Seat
