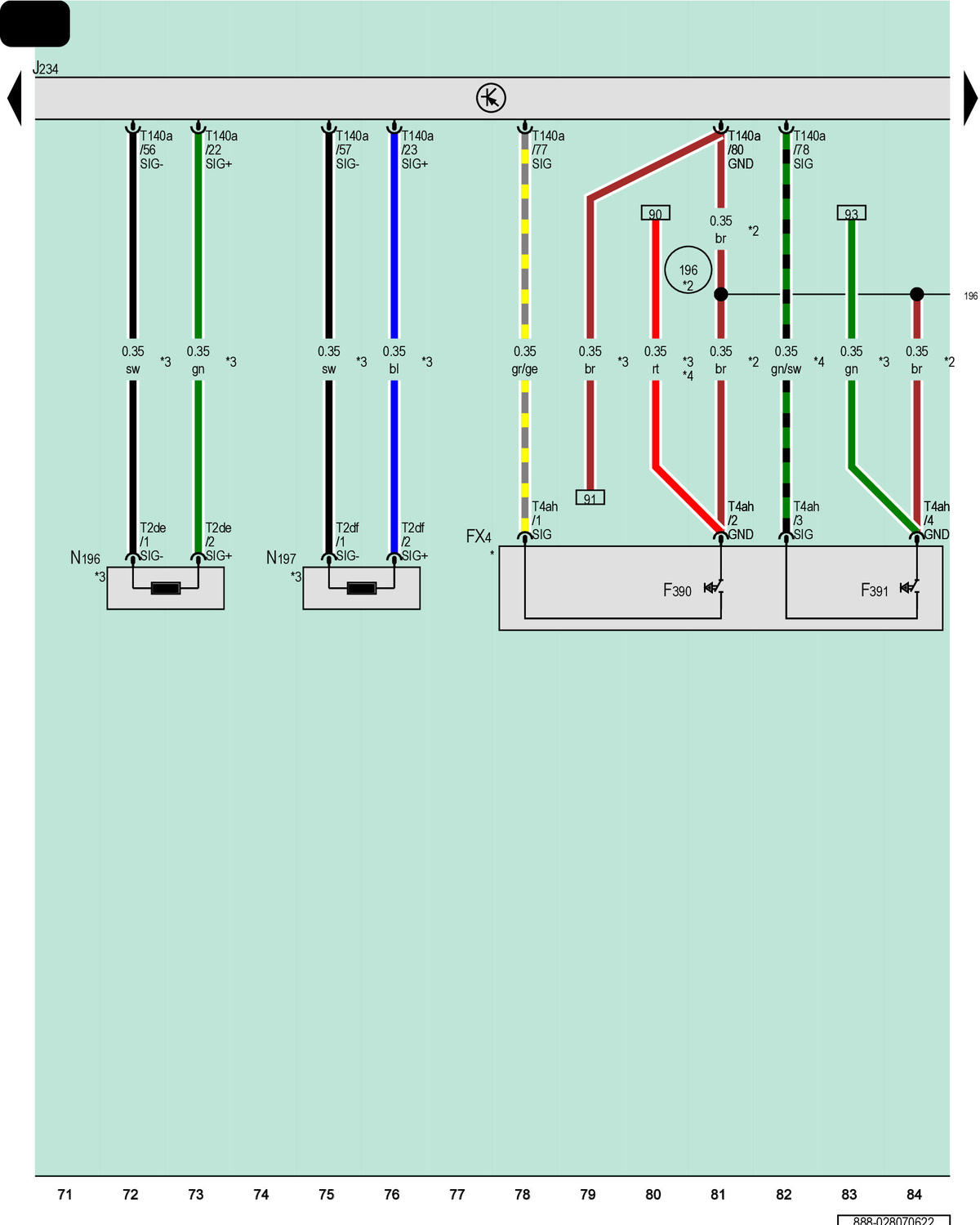

Dual Seat Belt Latch, Airbag Control Module, Driver Side Rear Seat Belt TENSIONER Igniter, Passenger Side Rear Seat Belt TENSIONER Igniter

Courtesy of AUDI OF AMERICA, LLC

FX4

Dual Seat Belt Latch

F390

Driver Side Second Row Seat Belt Switch

F391

Center Second Row Seat Belt Switch

J234

Airbag Control Module

N196

Driver Side Rear Seat Belt Tensioner Igniter

N197

Passenger Side Rear Seat Belt Tensioner Igniter

T2de

2-Pin Connector, Yellow

T2df

2-Pin Connector, Yellow

T4ah

4-Pin Connector, Black

T140a

140-Pin Connector, Yellow

196

Ground Connection 3 (in Rear Wiring Harness)

*

Pre-Wired Component

*2

For Vehicles Without Seat Occupant Detection System

*3

For Vehicles with a Seat Occupant Detection System

*4

Different Wire Color Possible
