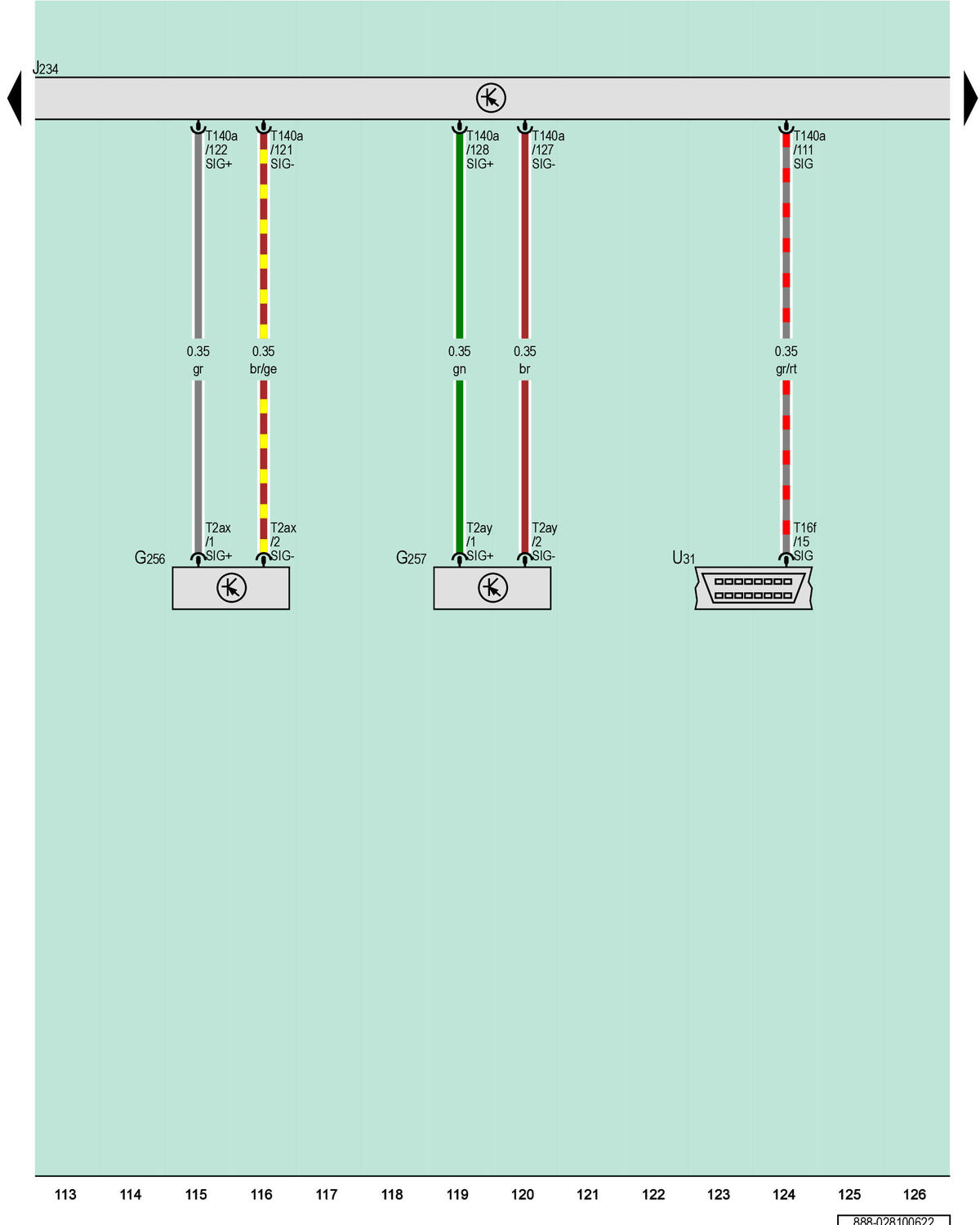

Driver Side Rear Thorax Airbag Crash Sensor, Passenger Side Rear Thorax Airbag Crash Sensor, Airbag Control Module, Diagnostic Connection

Courtesy of AUDI OF AMERICA, LLC

G256

Driver Side Rear Thorax Airbag Crash Sensor

G257

Passenger Side Rear Thorax Airbag Crash Sensor

J234

Airbag Control Module

T2ax

2-Pin Connector, Yellow

T2ay

2-Pin Connector, Yellow

T16f

16-Pin Connector, Black

T140a

140-Pin Connector, Yellow

U31

Diagnostic Connection
