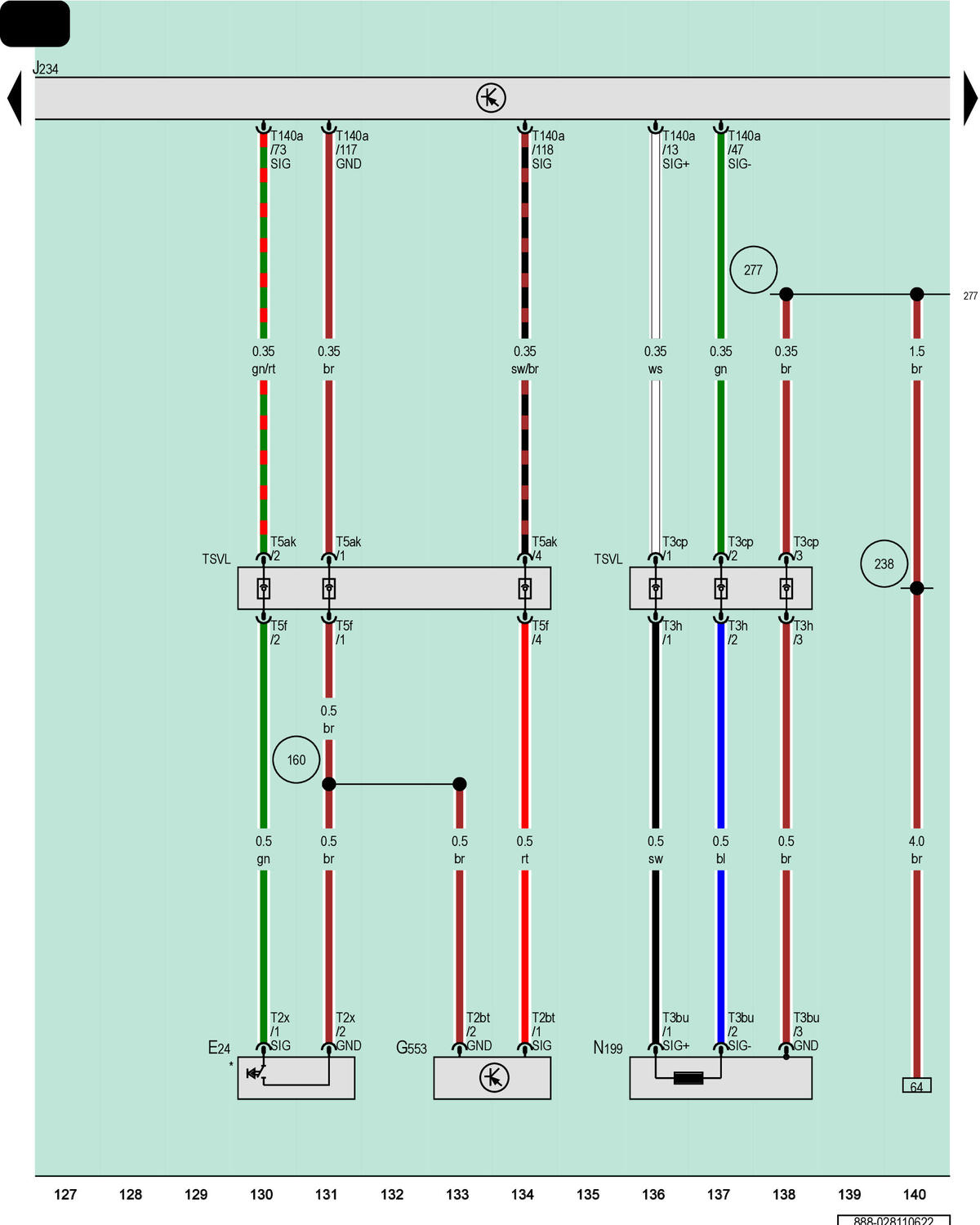

Driver Seat Belt Switch, Driver Seat Position Sensor, Airbag Control Module, Driver Thorax Airbag Igniter
E24
Driver Seat Belt Switch
G553
Driver Seat Position Sensor
J234
Airbag Control Module
N199
Driver Thorax Airbag Igniter
T2bt
2-Pin Connector, Black
T2x
2-Pin Connector, Black
T3bu
3-Pin Connector, Yellow
T3cp
3-Pin Connector, Yellow
T3h
3-Pin Connector, Yellow
T5ak
5-Pin Connector, Black
T5f
5-Pin Connector, Black
T140a
140-Pin Connector, Yellow
TSVL
Left Front Seat Coupling Station
160
Ground Connection (in Seat Belt Tensioner Wiring Harness)
238
Ground Connection 1 (in Interior Wiring Harness)
277
Ground Connection 3 (in Interior Wiring Harness)
*
Pre-Wired Component
