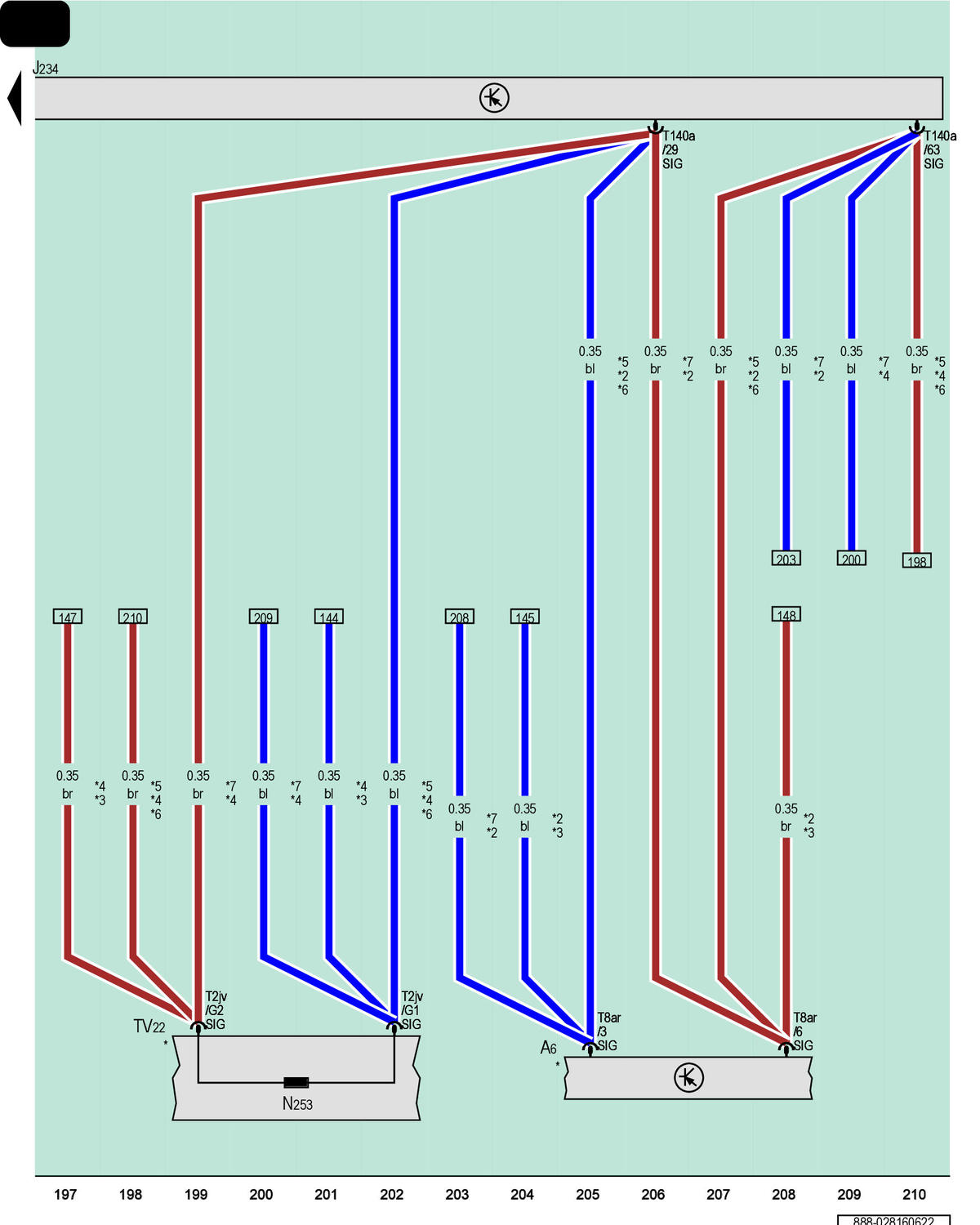

Battery, 48 V, Airbag Control Module, Terminal 30 Wire Junction 2

Courtesy of AUDI OF AMERICA, LLC

A6

Battery, 48 V

J234

Airbag Control Module

N253

Battery Interrupt Igniter

T2jv

2-Pin Connector, Yellow

T8ar

8-Pin Connector, Black

T140a

140-Pin Connector, Yellow

TV22

Terminal 30 Wire Junction 2

*

Refer to Applicable Battery Wiring Diagram

*2

For Vehicles with 48 V Hybrid System

*3

Through November 2020

*4

For Vehicles with Battery in the Luggage Compartment

*5

From November 2020

*6

Through November 2021

*7

From November 2021
