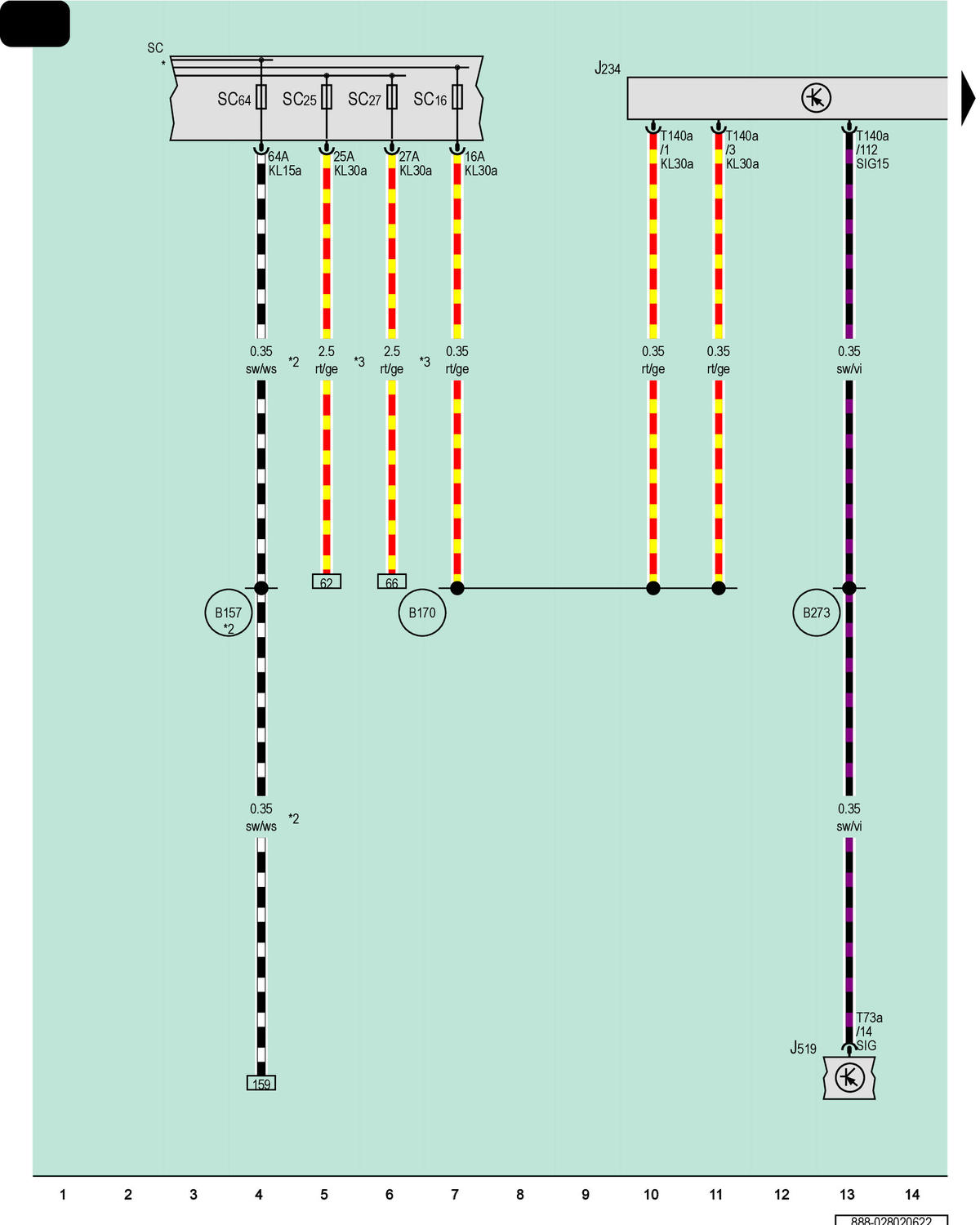

Airbag Control Module, Vehicle Electrical System Control Module, Fuse Panel C

Courtesy of AUDI OF AMERICA, LLC

J234

Airbag Control Module

J519

Vehicle Electrical System Control Module

Fuse Panel C

SC16

Fuse 16 (On Fuse Panel C)

SC25

Fuse 25 (On Fuse Panel C)

SC27

Fuse 27 (On Fuse Panel C)

SC64

Fuse 64 (On Fuse Panel C)

T73a

73-Pin Connector, Black

T140a

140-Pin Connector, Yellow

B157

Positive Connection 3 (15a) (in Interior Wiring Harness)

B170

Positive Connection 2 (30) (in Interior Wiring Harness)

B273

Positive Connection (15) (in Main Wiring Harness)

Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior

For Vehicles with US Equipment

For Vehicles with Advanced Safety Systems
