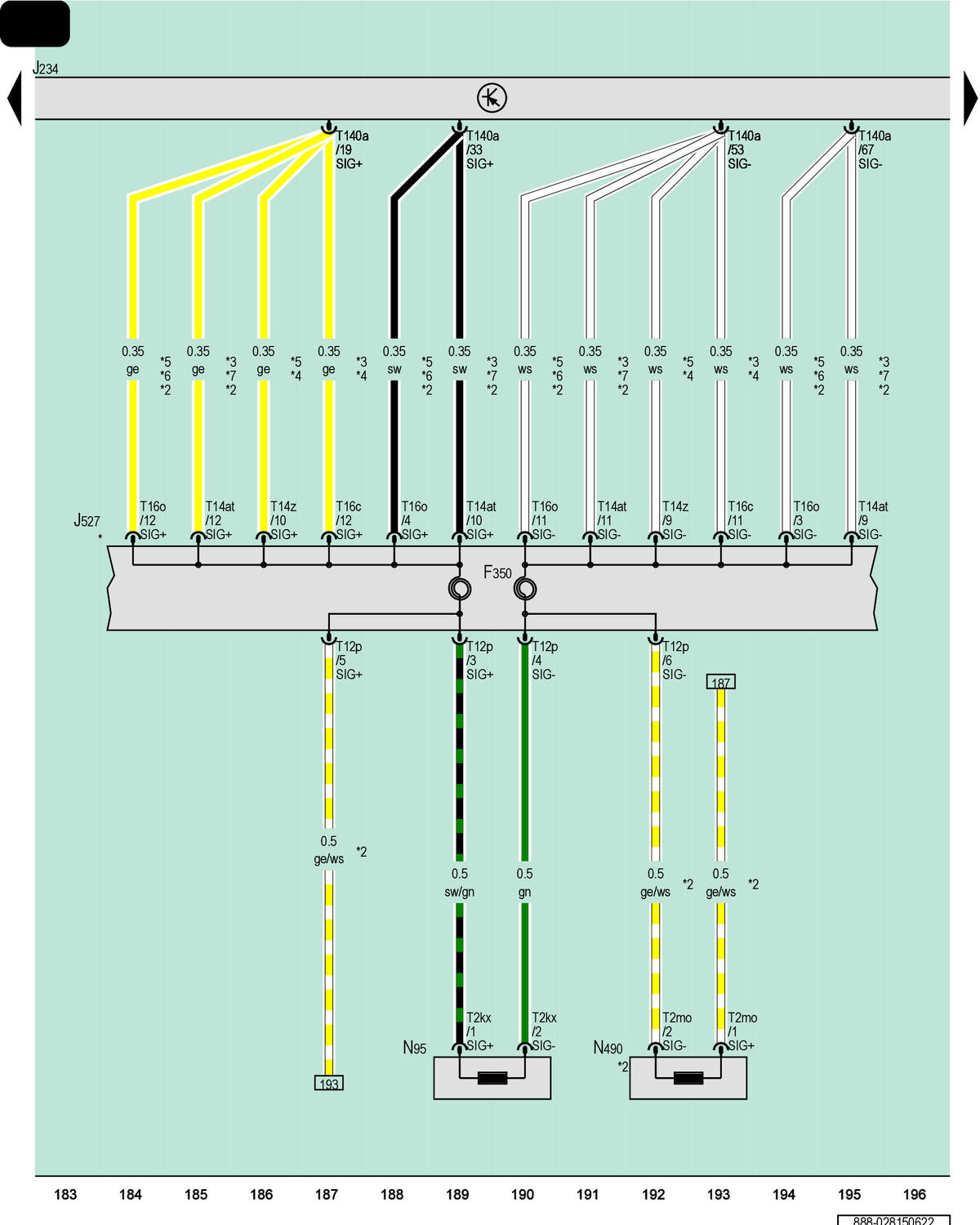

Airbag Control Module, Steering Column Electronics Control Module, Driver Airbag Igniter, Driver Airbag Release Valve Igniter
F350
Spiral Spring
J234
Airbag Control Module
J527
Steering Column Electronics Control Module
N95
Driver Airbag Igniter
N490
Driver Airbag Release Valve Igniter
T2kx
2-Pin Connector, Black
T2mo
2-Pin Connector, Yellow
T12p
12-Pin Connector, Yellow
T14at
14-Pin Connector, Brown
T14z
14-Pin Connector, Black
T16c
16-Pin Connector, Black
T16o
16-Pin Connector, Black
T140a
140-Pin Connector, Yellow
*
Refer to Applicable Steering Wheel Wiring Diagram
*2
For Vehicles with US Equipment
*3
For Vehicles Without Heated Steering Wheel
*4
For Vehicles Without US Equipment
*5
For Vehicles with Heated Steering Wheel
*6
From November 2021
*7
Through November 2021
