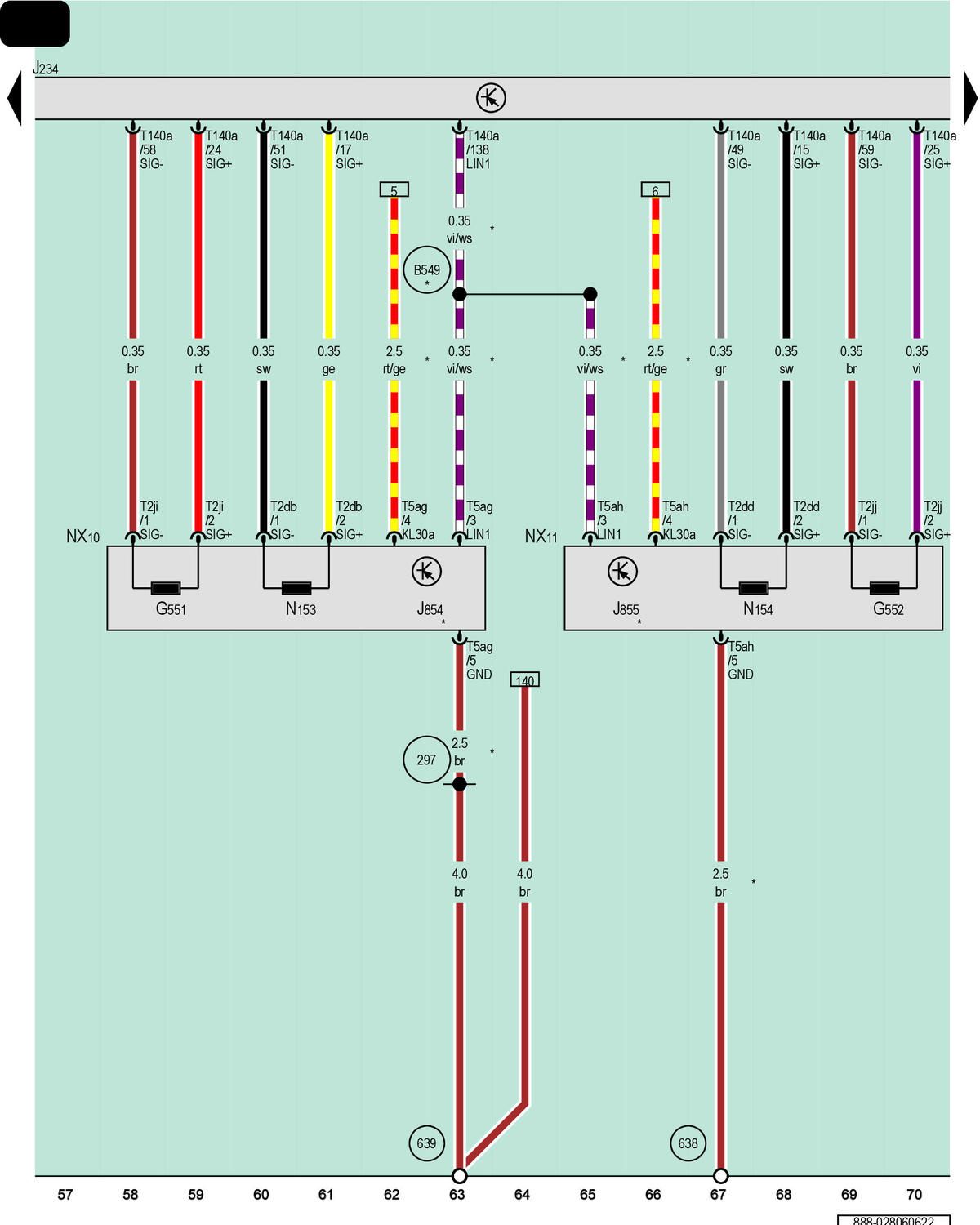

Airbag Control Module, Left Front Seat Belt, Right Front Seat Belt
G551
Driver Belt Force Limiter
G552
Front Passenger Belt Force Limiter
J234
Airbag Control Module
J854
Left Front Seat Belt Tensioner Control Module
J855
Right Front Seat Belt Tensioner Control Module
NX10
Left Front Seat Belt
NX11
Right Front Seat Belt
N153
Driver Seat Belt Tensioner Igniter 1
N154
Front Passenger Seat Belt Tensioner Igniter 1
T2db
2-Pin Connector, Yellow
T2dd
2-Pin Connector, Yellow
T2ji
2-Pin Connector, Yellow
T2jj
2-Pin Connector, Yellow
T5ag
5-Pin Connector, Naturally Cloudy
T5ah
5-Pin Connector, Naturally Cloudy
T140a
140-Pin Connector, Yellow
297
Ground Connection 12 (in Interior Wiring Harness)
638
Ground Connection on Right A-Pillar
639
Ground Connection on Left A-Pillar
B549
LIN Bus Connection 2 (in Main Wiring Harness)
*
For Vehicles with Advanced Safety Systems
