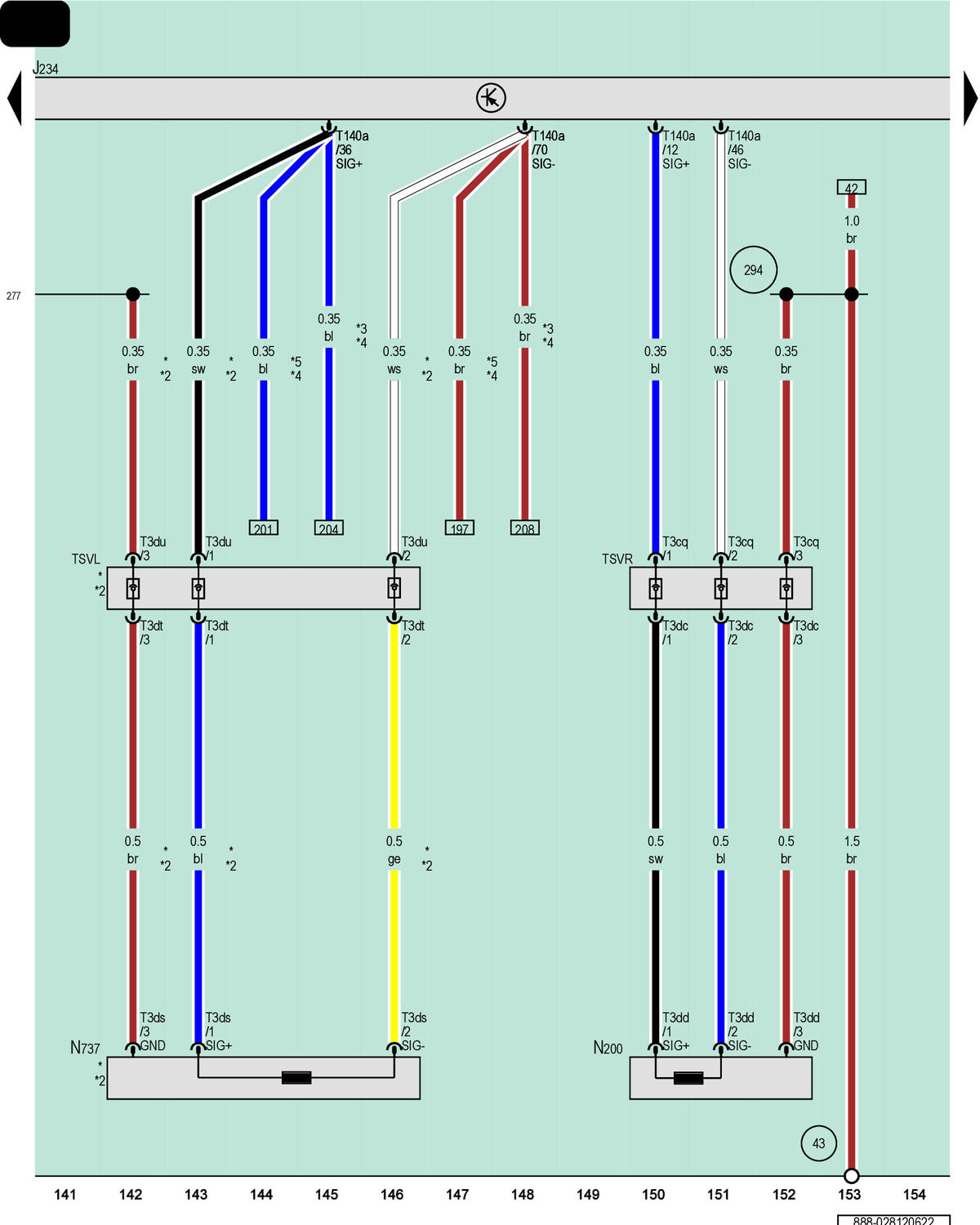

Airbag Control Module, Front Passenger Thorax Airbag Igniter, Driver Side Front Center Airbag Igniter For Occupant Contact Protection

Courtesy of AUDI OF AMERICA, LLC

J234

Airbag Control Module

N200

Front Passenger Thorax Airbag Igniter

N737

Driver Side Front Center Airbag Igniter for Occupant Contact Protection, In the Driver Seat, Right

T3cq

3-Pin Connector, Yellow

T3dc

3-Pin Connector, Yellow

T3dd

3-Pin Connector, Yellow

T3ds

3-Pin Connector, Yellow

T3dt

3-Pin Connector, Yellow

T3du

3-Pin Connector, Yellow

T140a

140-Pin Connector, Yellow

TSVL

Left Front Seat Coupling Station

TSVR

Right Front Seat Coupling Station

43

Ground Connection on A-Pillar, Lower Right

277

Ground Connection 3 (in Interior Wiring Harness)

294

Ground Connection 9 (in Interior Wiring Harness)

*

From November 2020

*2

For Vehicles with Front Center Airbag

*3

For Vehicles with 48 V Hybrid System

*4

Through November 2020

*5

For Vehicles with Battery in the Luggage Compartment
