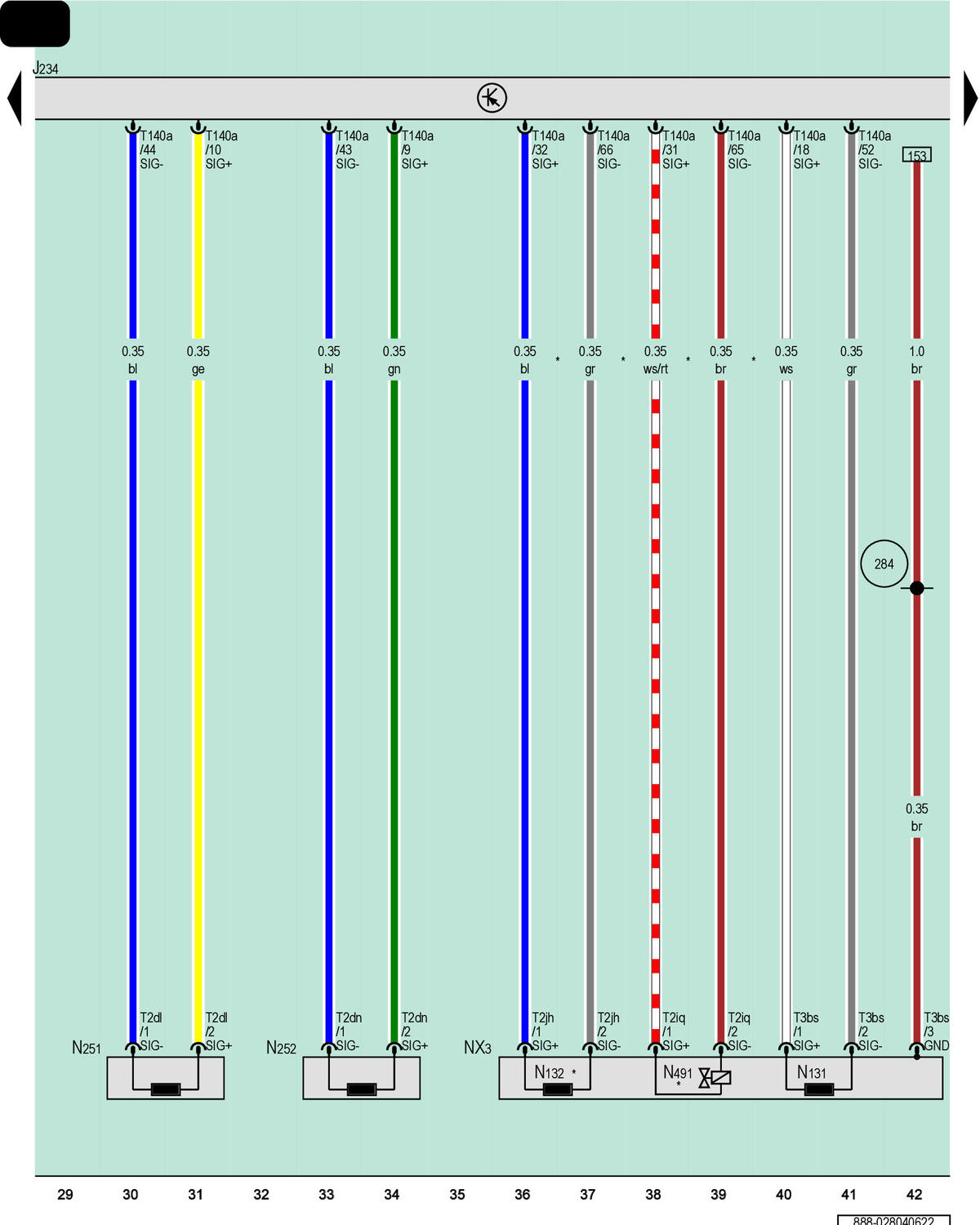

Airbag Control Module, Front Passenger Airbag Unit, Driver Head Curtain Airbag Igniter, Front Passenger Head Curtain Airbag Igniter
J234
Airbag Control Module
NX3
Front Passenger Airbag Unit
N131
Front Passenger Airbag Igniter 1
N132
Front Passenger Airbag Igniter 2
N251
Driver Head Curtain Airbag Igniter
N252
Front Passenger Head Curtain Airbag Igniter
N491
Front Passenger Airbag Release Valve Igniter
T2dl
2-Pin Connector, Yellow
T2dn
2-Pin Connector, Yellow
T2iq
2-Pin Connector, Yellow
T2jh
2-Pin Connector, Yellow
T3bs
3-Pin Connector, Yellow
T140a
140-Pin Connector, Yellow
284
Ground Connection 6 (in Interior Wiring Harness)
*
For Vehicles with US Equipment
