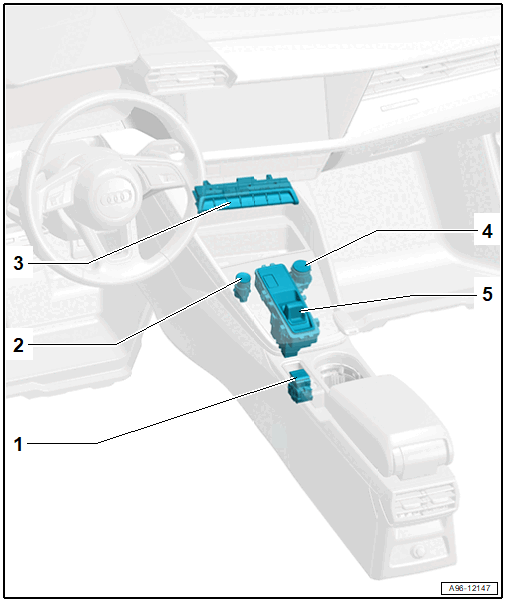

Component Location Overview - Controls In Center Console

The overview shows a LHD vehicle as an example. For RHD vehicles the layout is a mirror image.

Courtesy of AUDI OF AMERICA, LLC

1. Parking Brake Button -EX12- /-Auto Hold- Button -E540-
   • Removing and Installing. Refer to Parking Brake Button -EX12-, REMOVING AND INSTALLING .
2. Access/Start Authorization Button -E408-
   • Removing and Installing. Refer to Access/Start Authorization Button -E408-, REMOVING AND INSTALLING .
3. Control Unit 1 for Driving and Convenience Functions -E791-
   • With the following integrated components
     • Emergency Flasher Button -E229-
     • ASR/ESP Button -E256-
     • Parking Aid Button -E266-
     • Parallel Parking Assistance Button -E581-
     • Start/Stop Mode Button -E693-
     • Driving Profile Selection Button -E735-
   • The components cannot be replaced separately. If faulty replace a component of the switch module
   • Removing and Installing. Refer to Control Unit 1 for Driving and Convenience Functions -E791-, REMOVING AND INSTALLING .
4. Driver Volume Control -E67-
   • Removing and Installing. Refer to OVERVIEW - INFOTAINMENT SYSTEM .
5. Selector Mechanism Control
   • for versions with dual-clutch transmission
   • Removing and installing. Refer to appropriate Service Information. .
