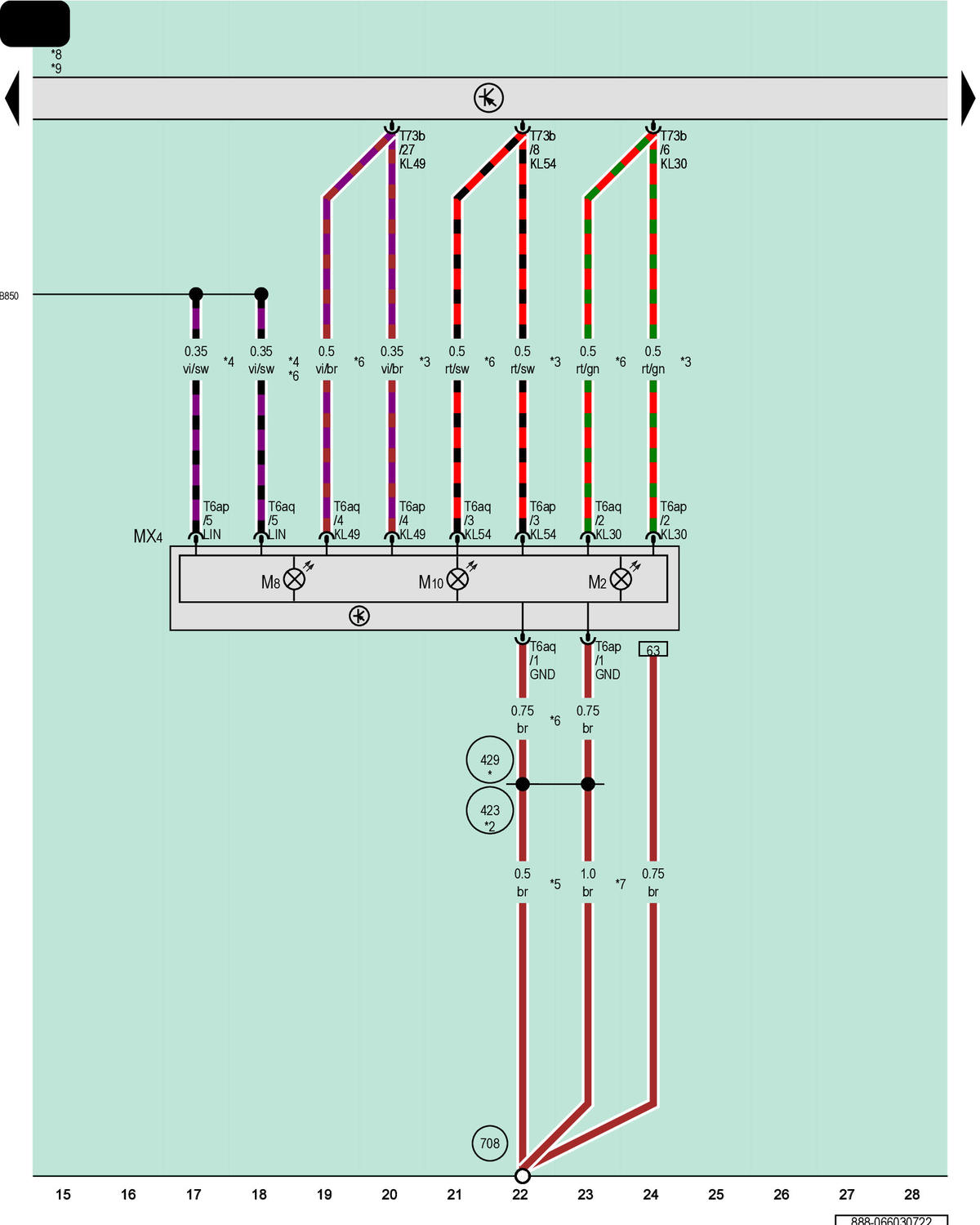

Vehicle Electrical System Control Module, Right Tail Lamp

Courtesy of AUDI OF AMERICA, LLC

J519

Vehicle Electrical System Control Module

M2

Right Tail Lamp Bulb

MX4

Right Tail Lamp

M8

Right Rear Turn Signal Bulb

M10

Right Brake Lamp Bulb

T6ap

6-Pin Connector, Gray

T6aq

6-Pin Connector, Green

T73b

73-Pin Connector, Black

423

Ground Connection 1 (in Right Rear Wiring Harness)

429

Ground Connection 4 (in Right Rear Wiring Harness)

708

Ground Connection 2 on Right Rear Chassis Side Member

B850

LIN Bus Connection 14 (in Main Wiring Harness)

*

Sportback

*2

Sedan

*3

For Vehicles Without US Equipment

*4

Different Wire Color Possible

*5

Through November 2021

*6

For Vehicles with US Equipment

*7

From November 2021

*8

Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior

*9

Refer to Applicable Wiring Diagram for Data Bus Networking
