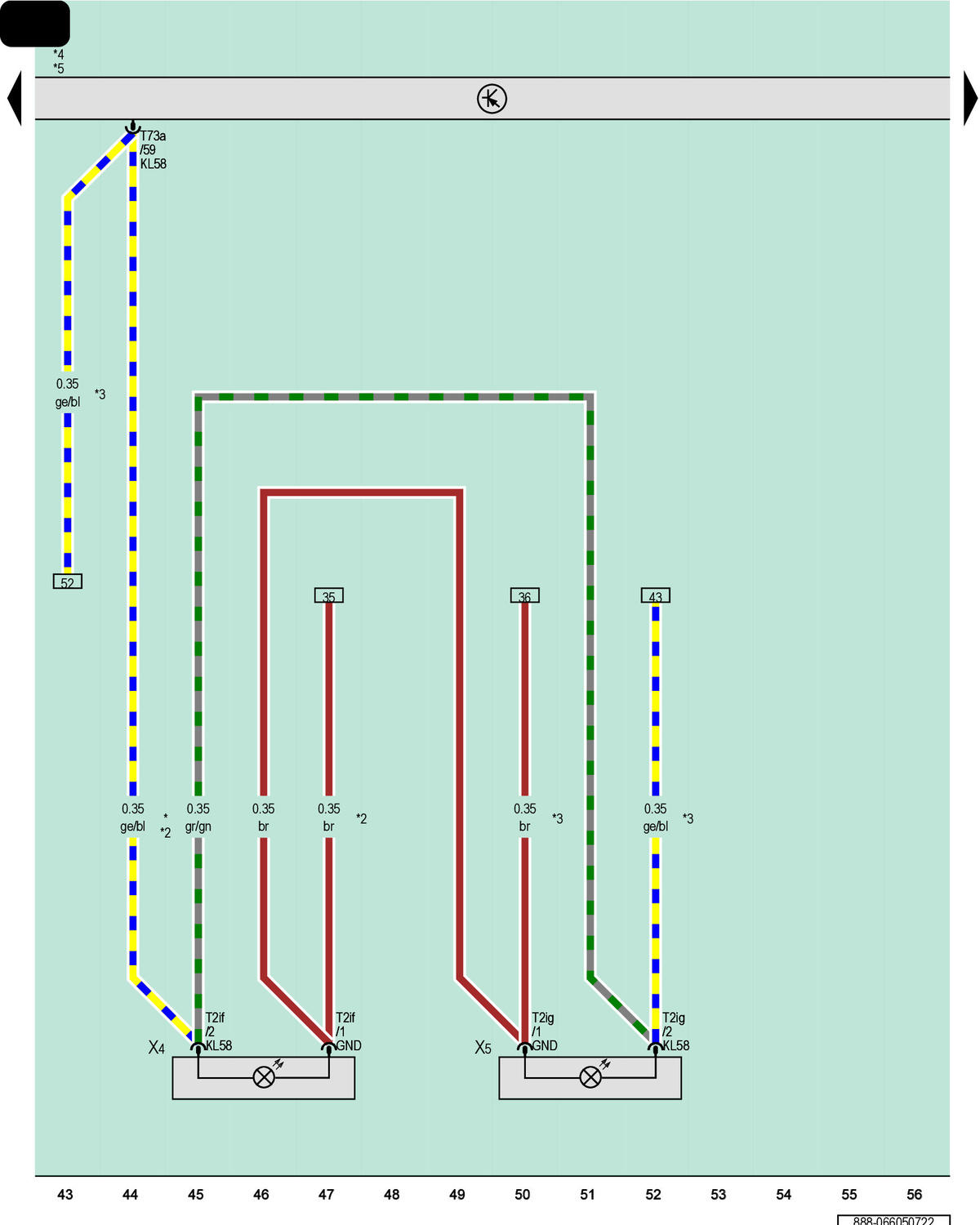

Vehicle Electrical System Control Module, Left License Plate Lamp, Right License Plate Lamp

Courtesy of AUDI OF AMERICA, LLC

J519

Vehicle Electrical System Control Module

T2if

2-Pin Connector, White

T2ig

2-Pin Connector, White

T73a

73-Pin Connector, Black

X4

Left License Plate Lamp

X5

Right License Plate Lamp

*

Different Wire Color Possible

*2

Sportback

*3

Sedan

*4

Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior

*5

Refer to Applicable Wiring Diagram for Data Bus Networking
