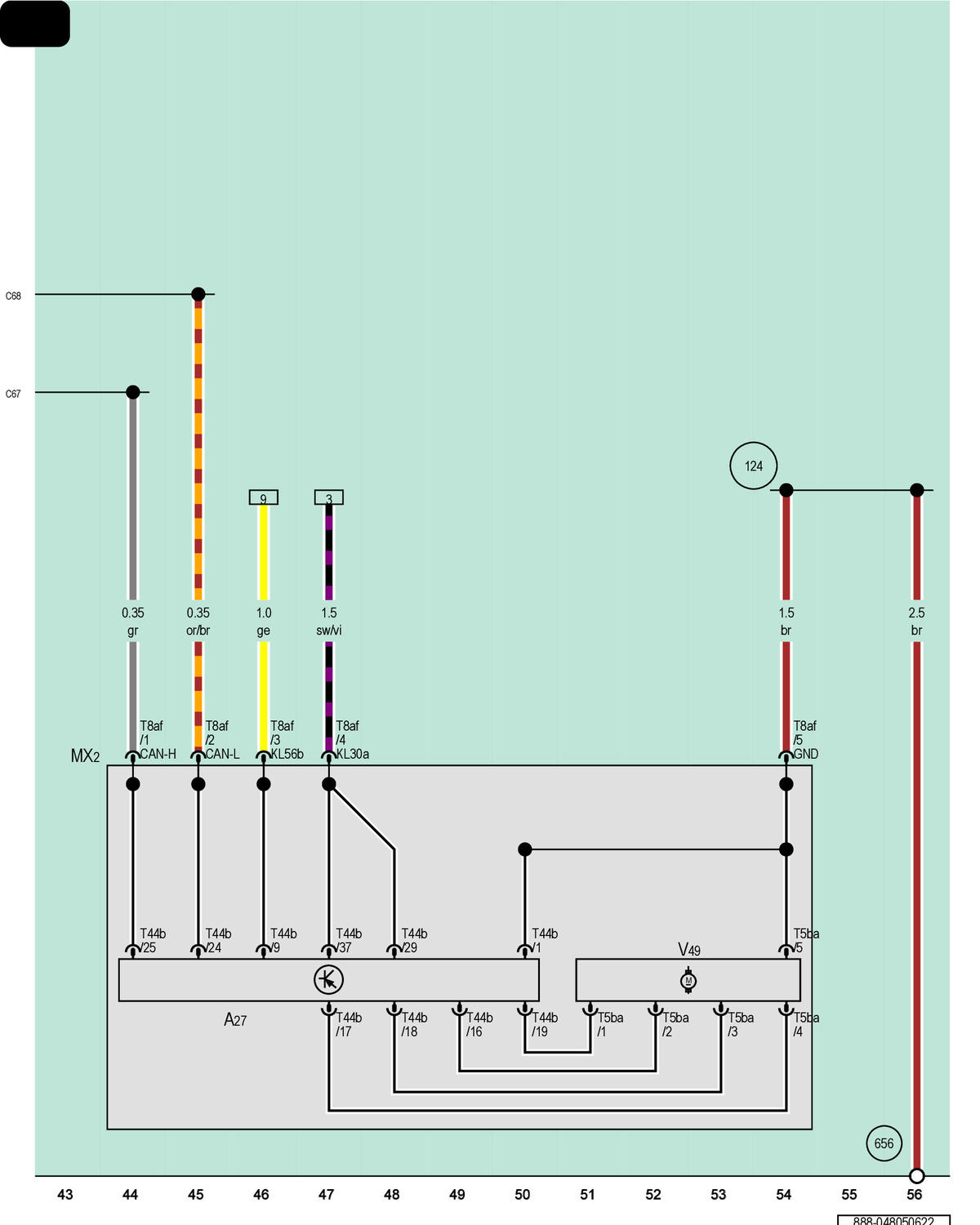

Right Front Headlamp

Courtesy of AUDI OF AMERICA, LLC

A27

Right LED Headlamp Power Output Module 1

MX2

T5ba

5-Pin Connector, Black

T8af

8-Pin Connector, Black

T44b

44-Pin Connector, Black

V49

Right Headlamp Range Control Adjustment Motor

124

Ground Connection (in Right Engine/Motor Compartment Wiring Harness)

656

Ground Connection on Right Headlamp

C67

CAN Bus High Connection (in Headlamp Wiring Harness)

C68

CAN Bus Low Connection (in Headlamp Wiring Harness)
