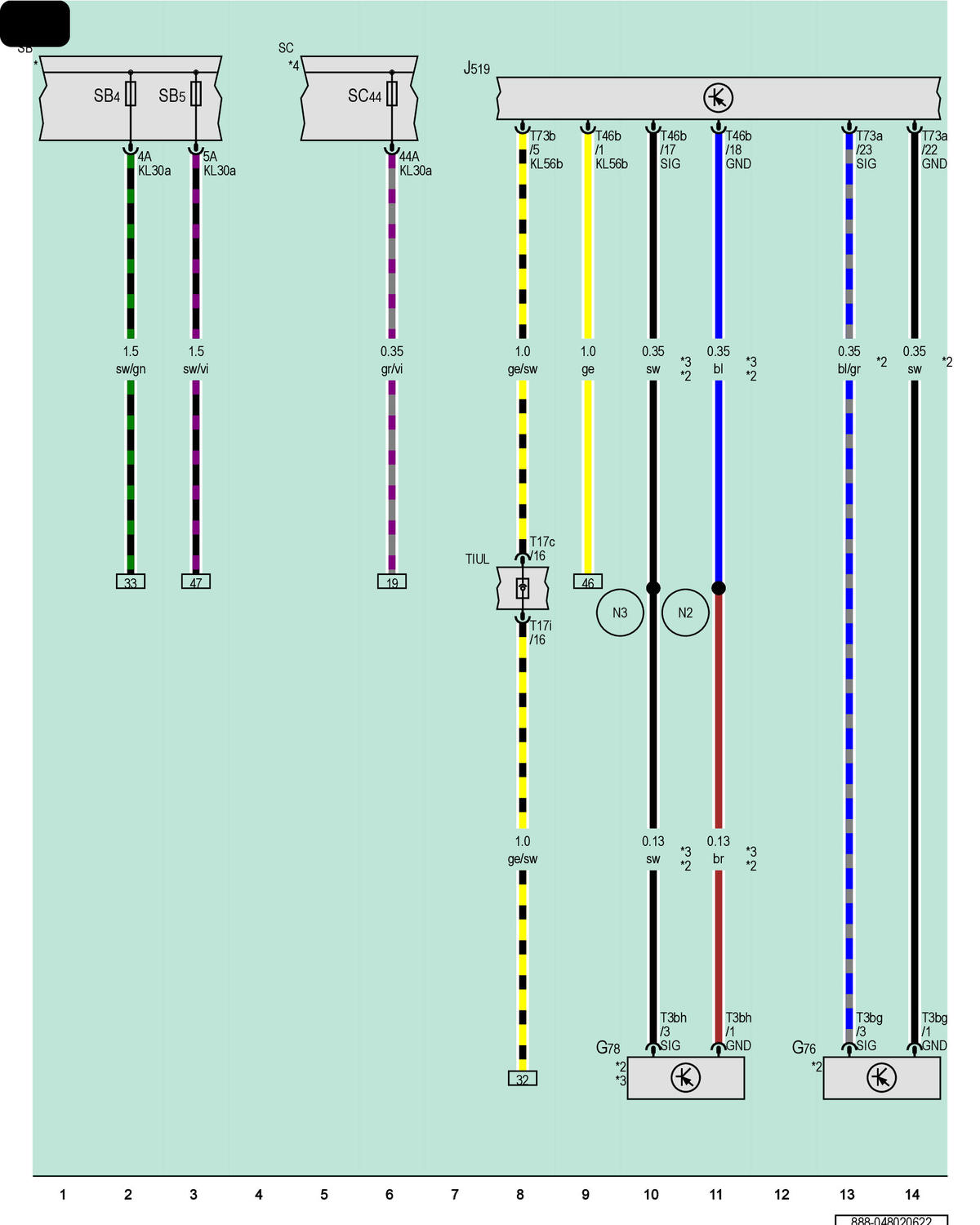

Left Rear Level Control System Sensor, Left Front Level Control System Sensor, Vehicle Electrical System Control Module, Fuse Panel B, Fuse Panel C

Courtesy of AUDI OF AMERICA, LLC

G76

Left Rear Level Control System Sensor

G78

Left Front Level Control System Sensor

J519

Vehicle Electrical System Control Module

SB

Fuse Panel B

SB4

Fuse 4 (On Fuse Panel B)

SB5

Fuse 5 (On Fuse Panel B)

SC

Fuse Panel C

SC44

Fuse 44 (On Fuse Panel C)

T3bg

3-Pin Connector, Black

T3bh

3-Pin Connector, Black

T17c

17-Pin Connector, Brown

T17i

17-Pin Connector, Brown

T46b

46-Pin Connector, Black

T73a

73-Pin Connector, Black

T73b

73-Pin Connector, Black

TIUL

Coupling Point in Interior, Bottom Left

N2

Connection 1 (in Headlamp Range Control Wiring Harness)

N3

Connection 2 (in Headlamp Range Control Wiring Harness)

*

Refer to Applicable Wiring Diagram for Fuses in Engine/Motor Compartment

*2

For Vehicles Without Electronic Damping

*3

For Vehicles with LED Headlamps and Variable Headlamps

*4

Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
