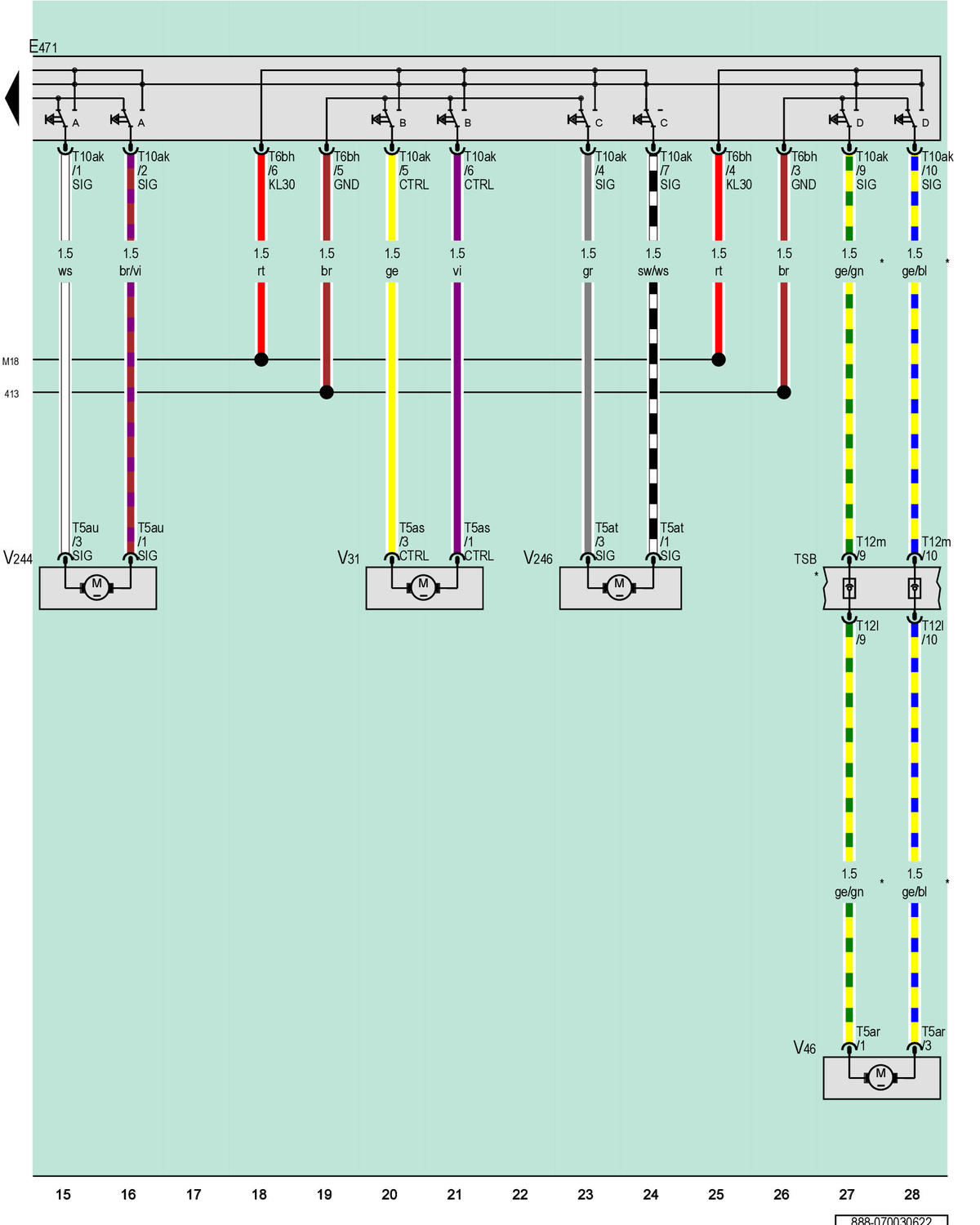

Front Passenger Seat Adjustment Control Head, Front Passenger Seat Forward/Back Adjustment Motor, Front Passenger Seat Angle Adjustment Motor, Front Passenger Seat Height Adjustment Motor
E471
Front Passenger Seat Adjustment Control Head
T5ar
5-Pin Connector, Brown
T5as
5-Pin Connector, Brown
T5at
5-Pin Connector, Brown
T5au
5-Pin Connector, Brown
T6bh
6-Pin Connector, Black
T10ak
10-Pin Connector, Black
T12l
12-Pin Connector, Black
T12m
12-Pin Connector, Black
TSB
Front Passenger Seat Backrest Coupling Point
V31
Front Passenger Seat Forward/Back Adjustment Motor
V46
Front Passenger Backrest Adjustment Motor
V244
Front Passenger Seat Angle Adjustment Motor
V246
Front Passenger Seat Height Adjustment Motor
413
Ground Connection 4 (in Seat Adjustment Wiring Harness)
M18
Connection 1 (in Front Passenger Seat Adjustment Wiring Harness)
*
For Vehicles with Power Passenger Seat Adjuster
