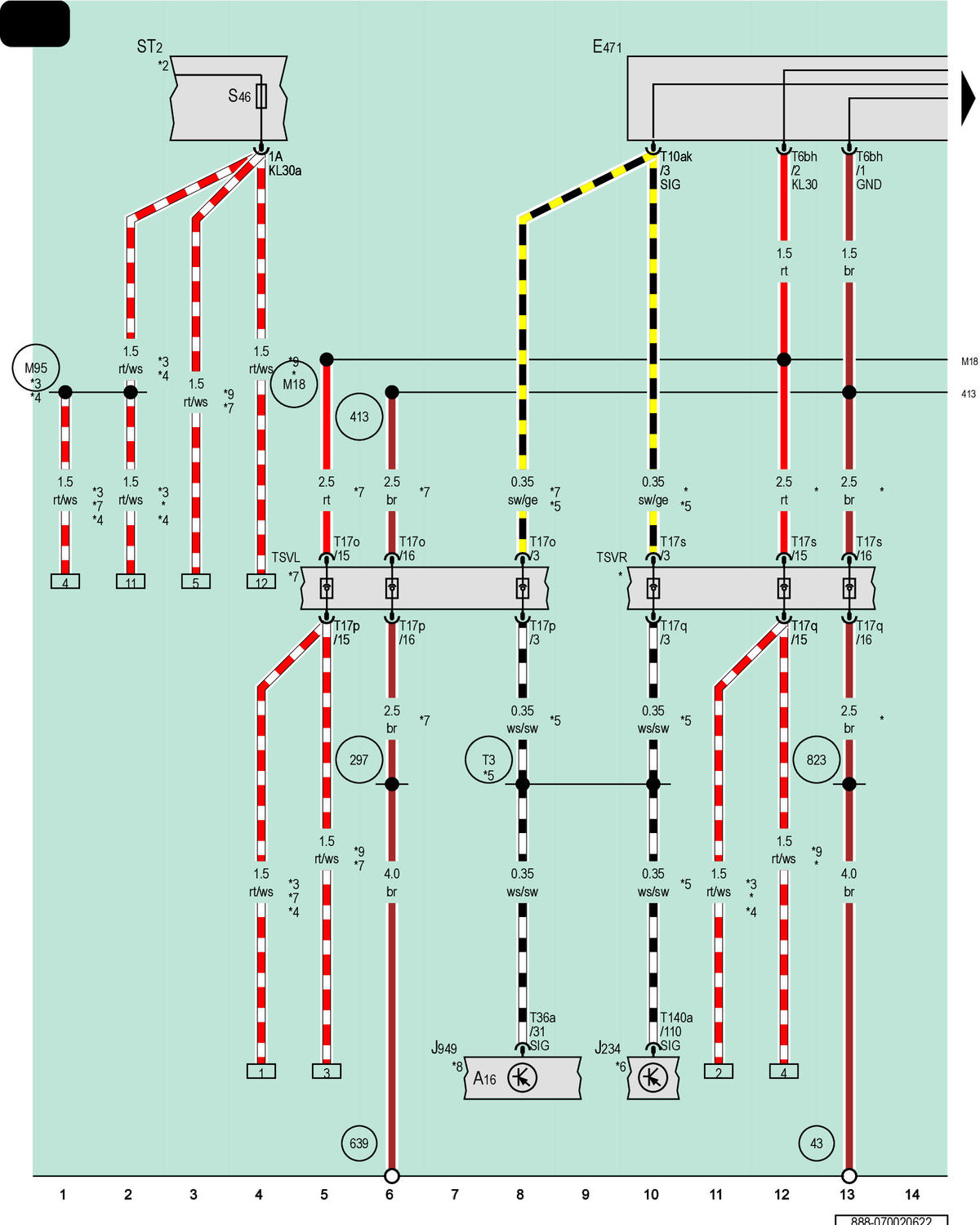

Front Passenger Seat Adjustment Control Head, Airbag Control Module, Control Module For Emergency Call Module And Communication Unit, Fuse Panel 2
A16
Telematics Emergency Battery
E471
Front Passenger Seat Adjustment Control Head
J234
Airbag Control Module
J949
Control Module for Emergency Call Module and Communication Unit
ST2
Fuse Panel 2
S46
Front Passenger Power Seat Adjustment Circuit Breaker 1
T6bh
6-Pin Connector, Black
T10ak
10-Pin Connector, Black
T17o
17-Pin Connector, Red
T17p
17-Pin Connector, Red
T17q
17-Pin Connector, Red
T17s
17-Pin Connector, Red
T36a
36-Pin Connector, Black
T140a
140-Pin Connector, Yellow
TSVL
Left Front Seat Coupling Station
TSVR
Right Front Seat Coupling Station
43
Ground Connection on A-Pillar, Lower Right
297
Ground Connection 12 (in Interior Wiring Harness)
413
Ground Connection 4 (in Seat Adjustment Wiring Harness)
639
Ground Connection on Left A-Pillar
823
Ground Connection 16 (in Interior Wiring Harness)
M18
Connection 1 (in Front Passenger Seat Adjustment Wiring Harness)
M95
Connection 3 (in Seat Adjustment Wiring Harness)
T3
Connection (in Airbag Wiring Harness)
*
For LHD Vehicles
*2
Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
*3
For Vehicles Without Power Lumbar Support Adjustment
*4
Through June 2021
*5
For Vehicles with Power Passenger Seat Adjuster
*6
Refer to Applicable Airbag Wiring Diagram
*7
For RHD Vehicles
*8
Refer to Applicable Communication Wiring Diagram
*9
For Vehicles with Power Lumbar Support Adjustment
