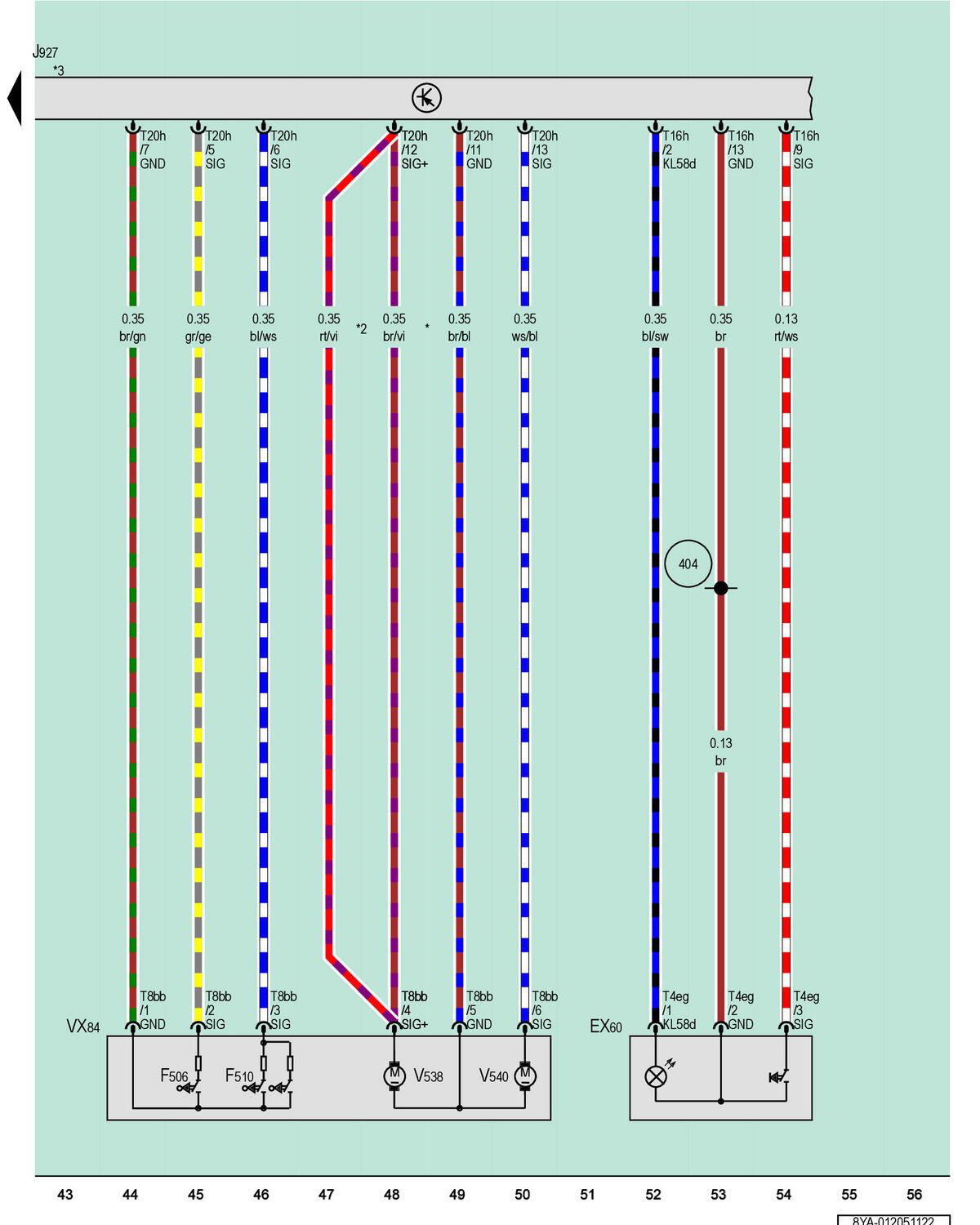

Control Head In Passenger Side Rear Door, Passenger Side Rear Door Control Module, Passenger Side Rear Door Lock Unit

Courtesy of AUDI OF AMERICA, LLC

EX60

Control Head in Passenger Side Rear Door

F506

Passenger Side Rear Door Contact Switch

F510

Passenger Side Rear Central Locking System Actuator

J927

Passenger Side Rear Door Control Module

T4eg

4-Pin Connector, Brown

T8bb

8-Pin Connector, Black

T16h

16-Pin Connector, Black

T20h

20-Pin Connector, White

VX84

Passenger Side Rear Door Lock Unit

V538

Passenger Side Rear Door Central Locking -Safe- Motor

V540

Passenger Side Rear Central Locking System Motor

404

Ground Connection 4 (in Driver Door Wiring Harness)

*

Through November 2022

*2

From November 2022

*3

Refer to Applicable Wiring Diagram for Interior Lamps
