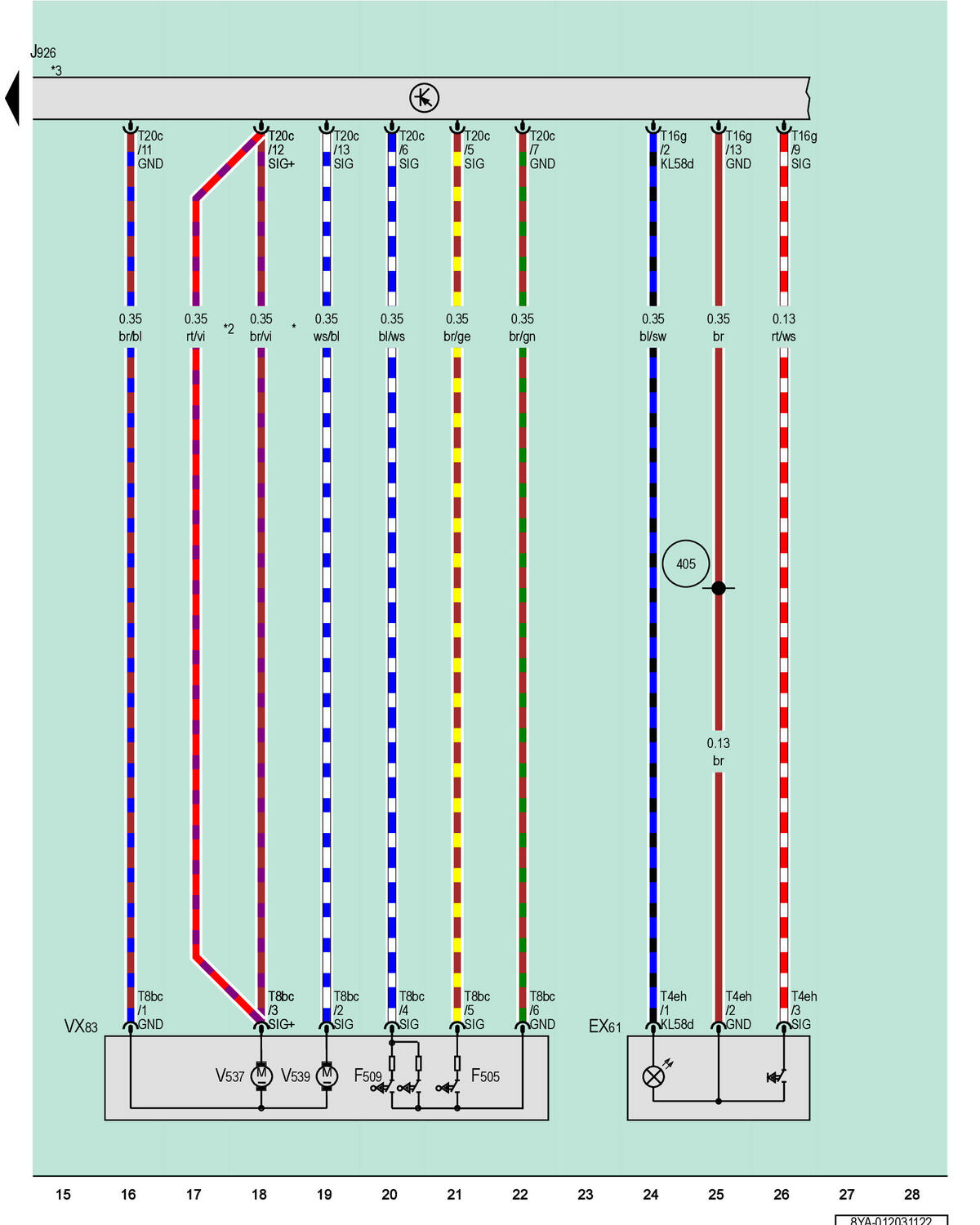

Control Head In Driver Side Rear Door, Driver Side Rear Door Control Module, Driver Side Rear Door Lock Unit

Courtesy of AUDI OF AMERICA, LLC

EX61

Control Head in Driver Side Rear Door

F505

Driver Side Rear Door Contact Switch

F509

Driver Side Rear Central Locking System Actuator

J926

Driver Side Rear Door Control Module

T4eh

4-Pin Connector, Brown

T8bc

8-Pin Connector, Black

T16g

16-Pin Connector, Black

T20c

20-Pin Connector, White

VX83

Driver Side Rear Door Lock Unit

V537

Driver Side Rear Door Central Locking -Safe- Motor

V539

Driver Side Rear Central Locking System Motor

405

Ground Connection 4 (in Front Passenger Door Wiring Harness)

*

Through November 2022

*2

From November 2022

*3

Refer to Applicable Wiring Diagram for Interior Lamps
