Overview - Fuel Delivery Unit/Fuel Level Sensor, TFSI Fwd Vehicles

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

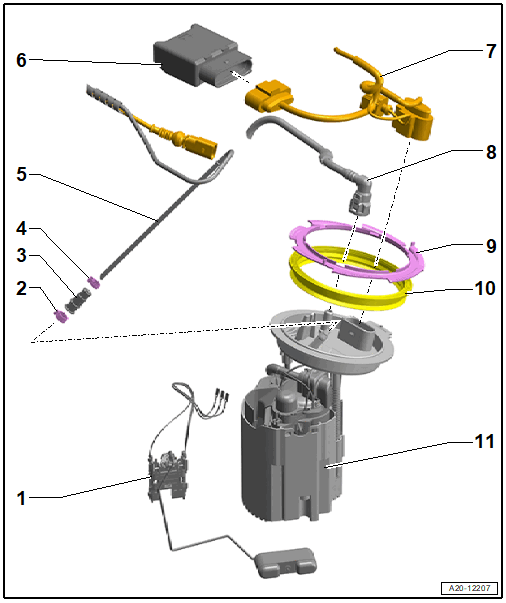

Fig 1: Exploded View Of Fuel Delivery Unit/Fuel Level Sensor, TFSI FWD Vehicles

Courtesy of AUDI OF AMERICA, LLC

Fuel Level Sensor -G-
- Fuel Level Sensor -G-, REMOVING AND INSTALLING
Clamp
- Always replace after removing
Grommet
Clamp
- Always replace after removing
Fuel Line
- To Metering Pump -V54-
- For versions with parking/auxiliary heater
Fuel Pump Control Module -J538-
- Check using the => .
- Fuel Pump Control Module -J538-, REMOVING AND INSTALLING, VEHICLES WITHOUT HIGH-VOLTAGE SYSTEM
Wire
- For Fuel Delivery Unit -GX1- with fuel delivery unit for:
  - Transfer Fuel Pump -G6- and Fuel Level Sensor -G-
  - Fuel Pump Control Module -J538-
  - Equipment version: Metering Pump -V54-
- Make sure it is attached securely
Fuel Line
- To the engine
- Do not kink
- Clipped to the fuel tank
- Connector Couplings, Disconnecting and Connecting. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
Locking Ring
- Loosen and tighten using the Wrench - Fuel Sending Unit:T10202
- 110 Nm
Seal
- Always replace after removing
- Install dry
Fuel Delivery Unit -GX1-
- With the Transfer Fuel Pump -G6-
- With integrated fuel filter; the fuel filter cannot be replaced separately
- Check the fuel pump electronically using the => .
- Removing and installing. Refer to FUEL DELIVERY UNIT/FUEL LEVEL SENSOR, REMOVING AND INSTALLING, TFSI VEHICLES .
- Connector Couplings, Disconnecting and Connecting. Refer to CONNECTOR COUPLINGS .
- It must be ensured that at least five liters of fuel are in the fuel tank after installation.
