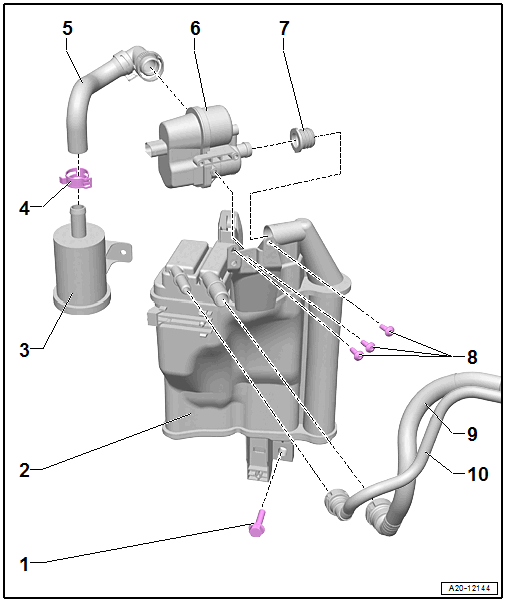

OVERVIEW - EVAP SYSTEM, WITH Fuel Tank Leak Detection Module -GX36-
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- Always replace after removing
- 20 Nm
- EVAP Canister
- Component location: right rear
- Removing and installing. Refer to EVAP CANISTER, REMOVING AND INSTALLING, TFSI VEHICLES WITHOUT HIGH-VOLTAGE SYSTEM .
- Air Filter
- Component location: at the right rear in the wheel housing under the wheel housing liner
- Clipped in on the EVAP canister -item 2-
- Removing and installing. Refer to EVAP SYSTEM AIR FILTER, REMOVING AND INSTALLING .
- Hose Clamps
- Connecting Hose
- From the air filter to the Fuel Tank Leak Detection Module -GX36-.
- Check for debris and clean if necessary.
- Fuel Tank Leak Detection Module -GX36-
- with
- Leak Detection Pump -V144-
- Fuel Tank Leak Detection Valve -N732-
- Fuel Tank Leak Detection Heater -Z186-
- EVAP Canister System Pressure Sensor -G804-
- Component location: right rear
- Removing and installing. Refer to Fuel Tank Leak Detection Module -GX36-, REMOVING AND INSTALLING .
- with
- Grommet
- Bolt
- Quantity: 3
- 1.5 Nm
- Bleeder Line
- From the fuel tank
- Connector Couplings, Disconnecting and Connecting. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
- Bleeder Line
- To EVAP Canister Purge Regulator Valve 1 -N80-
- Connector Couplings, Disconnecting and Connecting. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
- Clipped to the underbody
