Fuel Tank Leak Detection Module -GX36-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the EVAP canister. Refer to EVAP CANISTER, REMOVING AND INSTALLING, WITH Fuel Tank Leak Detection Module -GX36- .
-- Press together the releases -arrows B-.
-- Remove the hose -2- from the Fuel Tank Leak Detection Module -GX36- -1- -arrow A-.

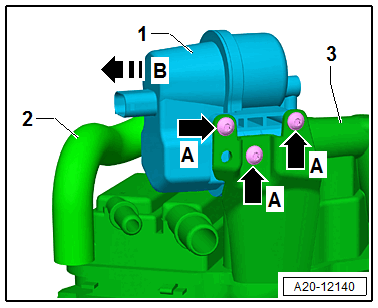

-- Remove the bolts -A arrows-.
-- Pull off the Fuel Tank Leak Detection Module -GX36- -1- toward the left -arrow B- and remove.
