EVAP CANISTER, REMOVING AND INSTALLING, WITH Fuel Tank Leak Detection Module -GX36-: Removing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the right rear wheel. Refer to TIRE PRESSURE MONITORING SYSTEM .
-- Remove the right rear wheel housing liner. Refer to OVERVIEW - REAR WHEEL HOUSING LINER .

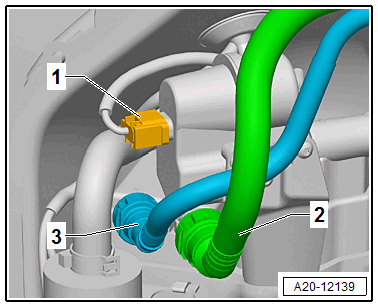

-- Disconnect the connector -1-.
-- Remove the breather lines -2- and -3- from the EVAP Canister.
-- For this, press together the releases. Refer to CONNECTOR COUPLINGS, DISCONNECTING .

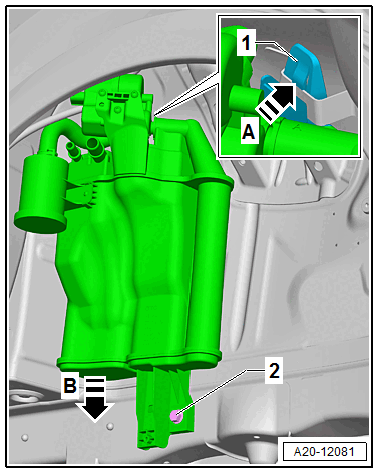

-- Remove the bolt -2-.
-- Using a screwdriver, lightly push the retainer -1- toward the luggage compartment -arrow A-.
-- Pull the EVAP canister downward from the guide bracket and remove -arrow B-.
-- Remove the EVAP canister.
