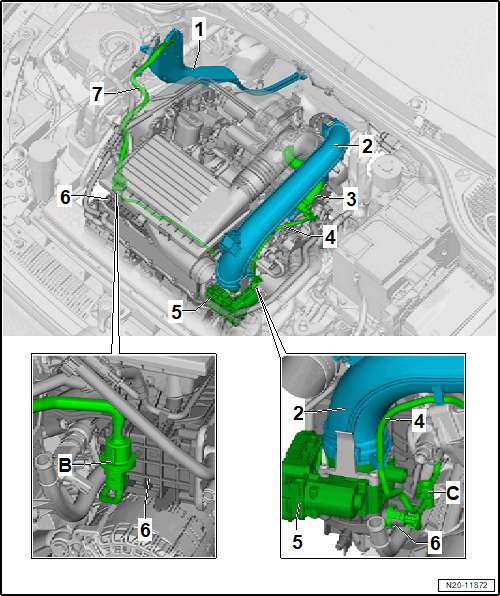

Connection Diagram - Engine/Motor Compartment EVAP System, Vehicles With 1.4L Engine
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
- 1 -
Separating Point
- For the vent/fuel lines
- 2 -
Air Duct Pipe
- Between Throttle Valve Control Module -GX3- and turbocharger
- Overview. Refer to OVERVIEW - CHARGE AIR SYSTEM .
- Removing and Installing. Refer to AIR DUCT PIPE, REMOVING AND INSTALLING
- 3 -
Bleeder Line
- For the crankcase ventilation
- 4 -
Bleeder Line
- Between the check valve -C-, intake manifold -6- and EVAP Canister Purge Regulator Valve 1 -N80- -B-
- 5 -
Throttle Valve Control Module -GX3-
- Overview. Refer to OVERVIEW - INTAKE MANIFOLD .
- Removing and installing. Refer to INTAKE MANIFOLD, REMOVING AND INSTALLING .
- 6 -
Intake Manifold
- Overview. Refer to OVERVIEW - INTAKE MANIFOLD .
- Removing and Installing. Refer to INTAKE MANIFOLD, REMOVING AND INSTALLING .
- 7 -
Bleeder Line
- Between the separating point -1- and EVAP Canister Purge Regulator Valve 1 -N80- -B-
- B -
EVAP Canister Purge Regulator Valve 1 -N80-
- C -
Check Valve
