CONNECTION DIAGRAM - EVAP SYSTEM, WITH Fuel Tank Leak Detection Module -GX36-

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

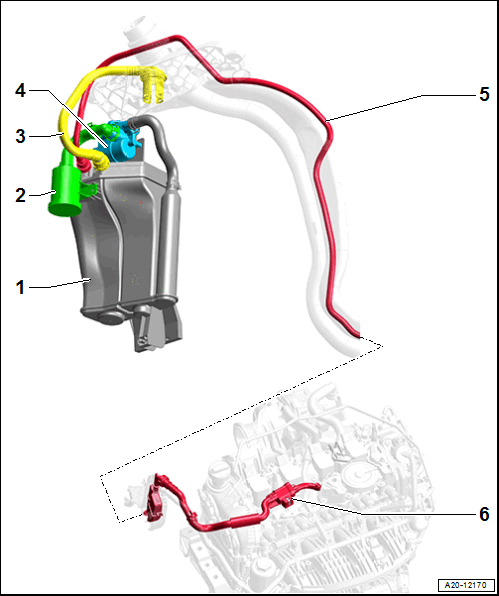

GWWA20-12170Courtesy of AUDI OF AMERICA, LLC
  1. EVAP Canister
    • There are different versions.
  2. Vent Hose/Air Filter
  3. Bleeder Line
  4. Fuel Tank Leak Detection Module -GX36-
    • Different installation positions
  5. Bleeder Line
  6. EVAP Canister Purge Regulator Valve 1 -N80-
