Overview - All-Wheel Drive Clutch

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

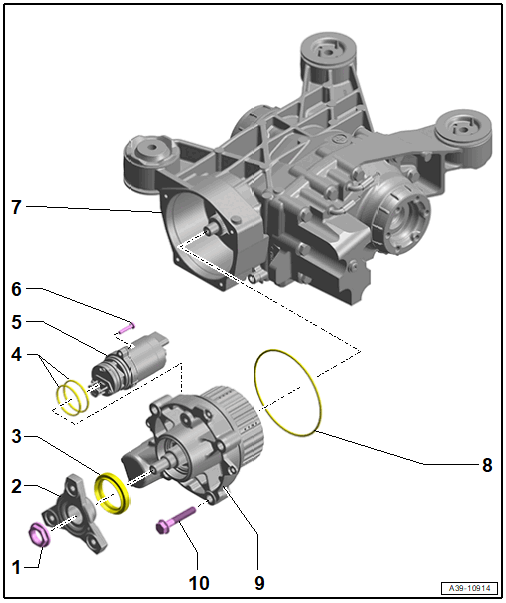

Fig 1: Exploded View Of All-Wheel Drive Clutch, Generation VI

Courtesy of AUDI OF AMERICA, LLC

Nut
- 210 Nm
- Always replace after removing
- Secure using Locking Fluid:D 000 600
Flange/Driveshaft
- Removing and Installing. Refer to INPUT SHAFT SEAL, REPLACING .
Flange/Driveshaft Seal
Replacing. Refer to INPUT SHAFT SEAL, REPLACING .
O-Rings
- Coat with all-wheel drive clutch oil and insert.
- Replace
All-Wheel Drive Control Module -J492-
- With integrated All-Wheel Drive Clutch Pump -V181-
- Removing and Installing. Refer to CONTROL MODULE, REMOVING AND INSTALLING .
Bolt
- 6 Nm
- Quantity: 2
Rear Final Drive
- Removing and Installing. Refer to FINAL DRIVE, REMOVING AND INSTALLING .
O-Ring
- Coat with all-wheel drive clutch oil and insert.
- After removal replace the all-wheel drive clutch
All-Wheel Drive Clutch Housing
- All-Wheel Drive Clutch, Removing and Installing. Refer to ALL-WHEEL DRIVE CLUTCH, REMOVING AND INSTALLING .
Bolts
- 50 Nm
- Quantity: 4
