Final Drive Identification

• The all-wheel drive clutch is installed in the final drive.
• The final drive and all-wheel drive clutch have separate oil circuits.
• The final drive is equipped with the >>All-Wheel Drive Clutch Generation VI<<.

Rear Final Drive Allocation

Rear Final Drive -0CQ-

Courtesy of AUDI OF AMERICA, LLC

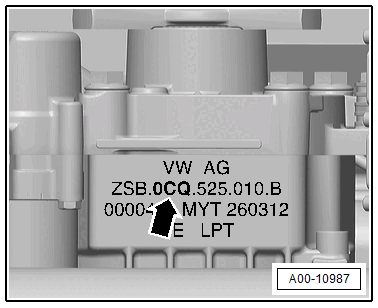

• The code -arrow- on the >>bottom<< of the final drive identifies which final drive is installed.

Example of the code on the rear final drive "0CQ".

Fig 1: Identifying Identification Code On Bottom Of Final Drive

Courtesy of AUDI OF AMERICA, LLC

-Arrow A- final drive part number

-Arrow B- final drive code

-Arrow C- Final drive production date

• If there are no codes -arrow B- present, then use the part number -arrow A- for the allocation. Refer to the Electronic Parts Information.

Example:

Additional data depends on the manufacturing.
