Overview - Glove Compartment

The overview shows a LHD vehicle as an example. For RHD vehicles the layout is a mirror image.

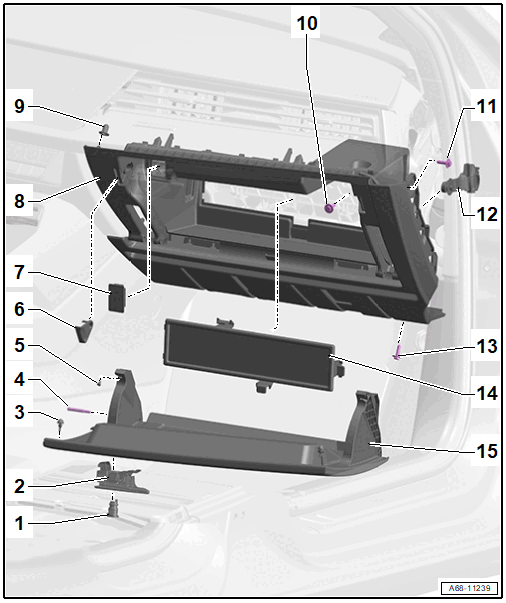

Fig 1: Exploded View Of Glove Compartment

Courtesy of AUDI OF AMERICA, LLC

1. Lock Cylinder
   • Equipped on some models
   • Refer to GLOVE COMPARTMENT HANDLE LOCK CYLINDER, REMOVING AND INSTALLING
2. Glove Compartment Handle
   • Refer to GLOVE COMPARTMENT HANDLE, REMOVING AND INSTALLING
   • Lock Cylinder, Removing and Installing. Refer to GLOVE COMPARTMENT HANDLE LOCK CYLINDER, REMOVING AND INSTALLING .
3. Stop Buffer
   • Not available separately from the repair kit. Refer to the Parts Information.
4. Glove Compartment Lid Hinge Pin
   • Quantity: 2
   • Not available separately from the repair kit. Refer to the Parts Information.
5. Stop Buffer
   • Quantity: 2
   • Not available separately from the repair kit. Refer to the Parts Information.
6. Lock Bar Guide
   • Quantity: 2
   • Clip in the glove compartment
   • Not available separately from the repair kit. Refer to the Parts Information.
7. Blind Cover
   • Equipped on some models
   • Push in the installation opening until it engages audibly.
8. Glove Compartment
   • Refer to GLOVE COMPARTMENT, REMOVING AND INSTALLING
9. Grommet
   • Quantity: 2
   • Not available separately from the repair kit. Refer to the Parts Information.
10. Bolt
    • Quantity: 4
    • 3 Nm
11. Bolt
    • 3 Nm
12. Glove Compartment Lid Damping Element
    • Refer to GLOVE COMPARTMENT LAMP SWITCH -E26-, REMOVING AND INSTALLING
13. Bolt
    • Quantity: 2
    • 3 Nm
14. Pollen Filter Cover
15. Glove Compartment Lid
    • Refer to GLOVE COMPARTMENT LID, REMOVING AND INSTALLING
    • Not available separately from the repair kit. Refer to the Parts Information.
