Lower Steering Column Trim Panel, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

-- Move the steering wheel as far to the rear and down as possible. Use the full steering column adjustment range for this.

-- Turn the steering wheel counterclockwise 90° from the straight position.

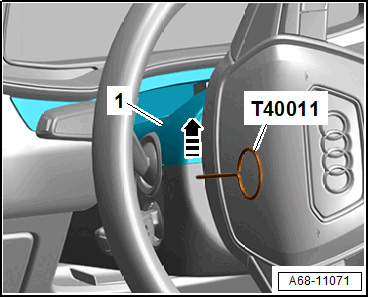

-- Unclip the upper steering column trim panel -1- from the lower steering column trim panel -arrow-.

Courtesy of AUDI OF AMERICA, LLC

-- To do that, slightly push forward the hook for the steering column trim panel, using the Pin:T40011 going through the opening.

-- Turn the steering wheel back 180° and repeat the procedure on the opposite side.

-- Disengage the upper steering column trim panel from the lower steering column trim panel, slightly push forward and then lay aside.

-- Remove the accessible bolt -arrow A- for the lower steering column trim panel.

Courtesy of AUDI OF AMERICA, LLC

-- Turn the steering wheel back 180° and remove bolt on the opposite side.

-- Bring the steering wheel back into the center (wheels are straight).

-- Remove the bolt -arrow B- and remove the lower steering column trim panel -1-.

-- Disengage the cable holder on the steering column trim panel -1-.

-- Disconnect the connector on the steering column trim panel -1-.
