Glove Compartment Lid, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the glove compartment. Refer to GLOVE COMPARTMENT, REMOVING AND INSTALLING .
-- Place the glove compartment on a soft surface.
-- Unclip the brake component -2- from the glove compartment lid and remove.

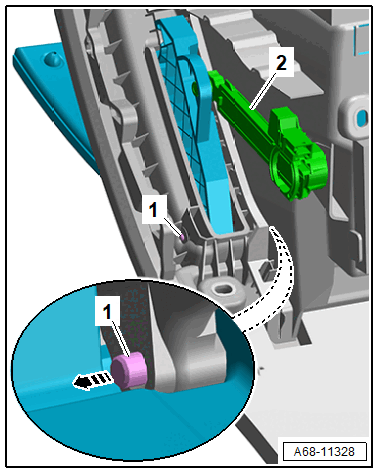

-- Push the right hinge pin -1- for the glove compartment lid using the T-Handle Hook:3438 as far as possible inward and remove using pliers -direction of the arrow-.

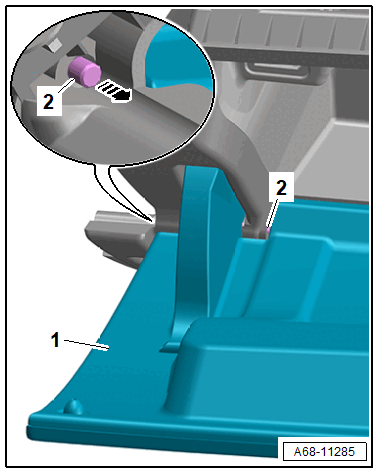

-- Push out the hinge pin -2- for the glove compartment lid using a flat-head screwdriver as far as possible outward and remove using pliers -direction of the arrow-.
-- Remove the glove compartment lid -1- from the glove compartment.
