Driver Side Instrument Panel Cover, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

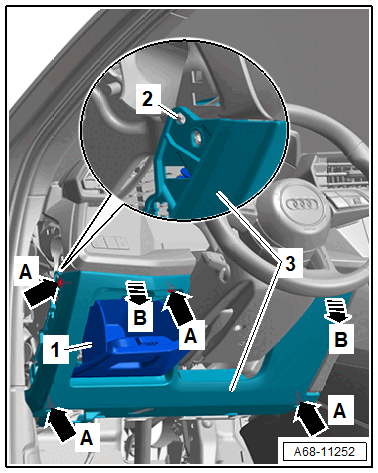

-- Remove the driver side instrument panel side cover. Refer to INSTRUMENT PANEL SIDE COVER, REMOVING AND INSTALLING .
-- Open or unclip the cover of the storage compartment -1-. Refer to DRIVER SIDE INSTRUMENT PANEL COVER/STORAGE COMPARTMENT .
-- Remove the bolts -A arrows-.
-- Disengage the instrument panel cover -3- on the side at the pin -2-.
-- Unclip the driver side instrument panel cover by hand from the instrument panel -B arrows- and remove.
-- Equipped on some models: disconnect the connector for the footwell lamp.
