Center Instrument Panel Cover, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the instrument panel cover on the driver side. Refer to DRIVER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING .

-- Remove the glove compartment. Refer to GLOVE COMPARTMENT, REMOVING AND INSTALLING .

-- Remove the cover from the center console. Refer to CENTER CONSOLE COVER, REMOVING AND INSTALLING .

-- Remove the instrument panel decorative trim on the front passenger side. Refer to INSTRUMENT PANEL DECORATIVE TRIM, REMOVING AND INSTALLING, FRONT PASSENGER SIDE .

-- Remove the Front A/C Display Control Head -E87-. Refer to DISPLAY CONTROL HEAD, REMOVING AND INSTALLING .

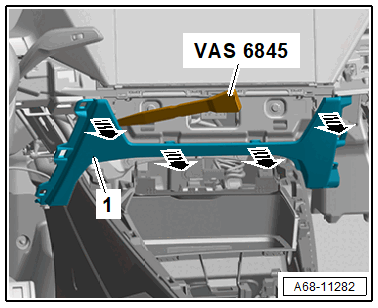

-- Unclip the center instrument panel cover -1- toward the rear -arrows- using a wedge from the Scraper Set: VAS 6845 .

Courtesy of AUDI OF AMERICA, LLC

-- Disengage the remaining clips and remove the instrument panel cover.
