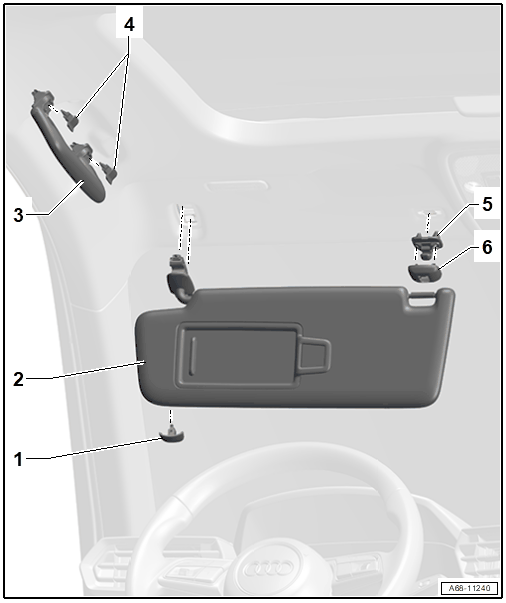

Overview - Sun Visors
WARNING: This page is about a different car, the 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
- Expanding Caps
- Clipped into the sun visor
- Sun Visor
- Refer to SUN VISOR, REMOVING AND INSTALLING
- Clip in the sun visor mount in the opening in the body
- Roof Grab Handle
- Expanding Caps
- Not available separately, included in the delivery package OVERVIEW - SUN VISORS
- Unclip using the Angled Screwdriver:VAS 6416
- Press until it engages completely
- Sun Visor Center Bearing
- Refer to SUN VISOR CENTER SUPPORT, REMOVING AND INSTALLING
- Do not damage spreader clips when inserting
- Expanding Cap
- Clipped into the sun visor center support
