Lower Center Console Cover, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Move the front seats as far back as possible.
-- Open the tabs, for that, push the Radio Removal Tool:T10057 into the recesses -arrow- to the left and right side.
-- Disconnect the connector and remove the control head -1-.
-- Remove the cover from the center console. Refer to CENTER CONSOLE COVER, REMOVING AND INSTALLING .

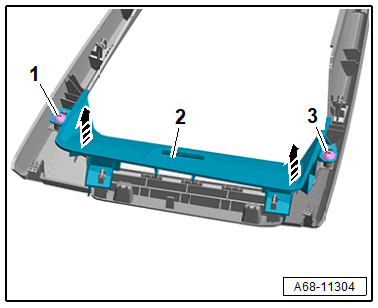

-- Remove the bolts -1 and 3-.
-- Unclip the cover -2- -arrows- with the Trim Removal Wedge: 3409 and remove it.
