Center Console Cover, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the center console insert. Refer to CENTER CONSOLE INSERT, REMOVING AND INSTALLING .

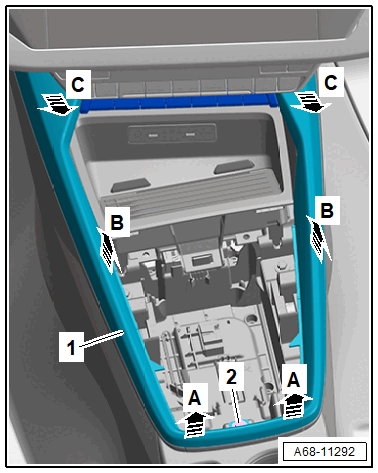

-- Remove the bolt -2-.
-- Reach with the hand under the center console -1- cover and carefully remove it upward from the center console -arrows A and B-.
-- Remove the center console cover backward -arrows C- from under the instrument panel and disconnect the connectors.
