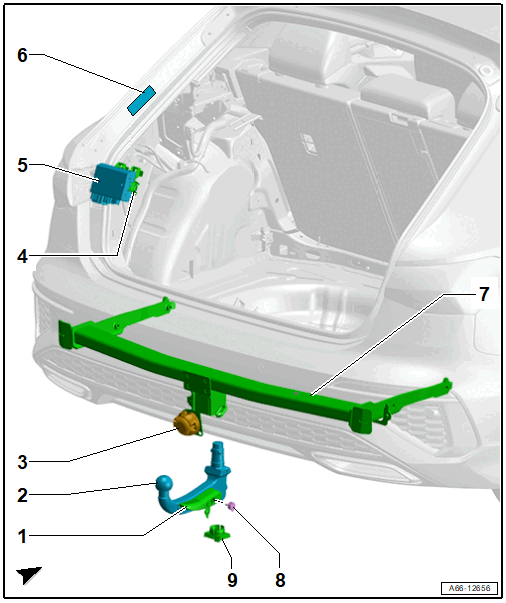

Overview - Trailer Hitch
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
- Operating Lever with Lock
- Shared component with the ball head
- Replacing the lock. Refer to BALL HEAD OPERATION LEVER LOCK, REMOVING AND INSTALLING .
- Ball Head
- Mounting and removing. Refer to Owner's Manual.
- Trailer Socket -U10-
- Removing and installing. Refer to Trailer Hitch .
- Frame
- For the Towing Recognition Control Module -J345-
- Towing Recognition Control Module -J345-
- Removing and installing. Refer to Towing Recognition Control Module -J345-, REMOVING AND INSTALLING .
- Information Label
- On the body on the left rear
- Bumper Carrier
- Removing and installing. Refer to BUMPER CARRIER, REMOVING AND INSTALLING, WITH TRAILER HITCH .
- Key
- Cap
- To bumper carrier
