Ball Head Operation Lever Lock, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

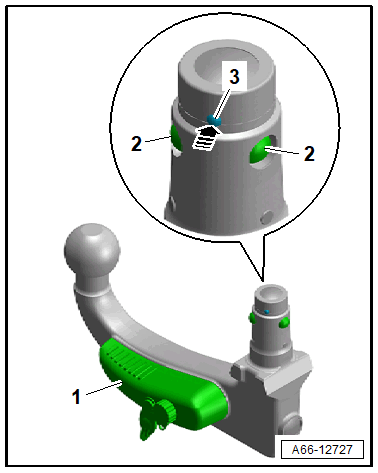

-- Press in the locking ball -3- on the removed ball head, using pliers -arrow-.
TIP
By pressing in the locking ball (diameter 5 mm) the operating lever -1- will automatically switch to the "locked" position. In this position the retaining balls (diameter 10 mm) -2- are pressed outward.

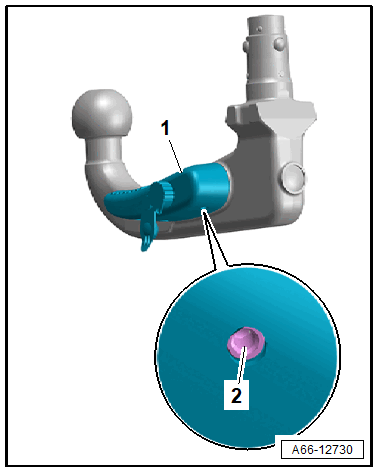

-- Using the Pin Remover, remove the dowel pin -2- with thread (diameter 6 mm) from the operating lever -1-.

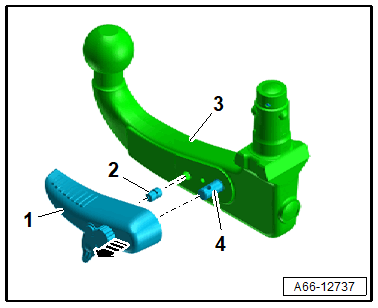

-- Remove the operating lever -1- from the actuation axis -4- -arrow-, doing this will press out the retaining pin -2- from the ball head -3- because if its spring force.
-- Remove the rubber ring -1-.

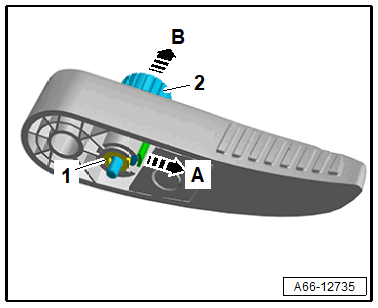

-- Release the retainer -arrow A- and at the same time remove the lock -2- -arrow B-.
