Roof Railing, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the head curtain airbag with igniter on the B-pillar from the body. The head curtain airbag remains installed. Refer to HEAD CURTAIN AIRBAG WITH IGNITER, REMOVING AND INSTALLING .

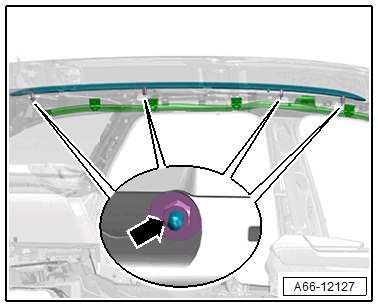

-- Remove the nuts -arrow- using the Body Socket:T40078  .

GWWA66-12127Courtesy of AUDI OF AMERICA, LLC

-- Remove the roof railing upward.
