Overview - Roof Railing

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

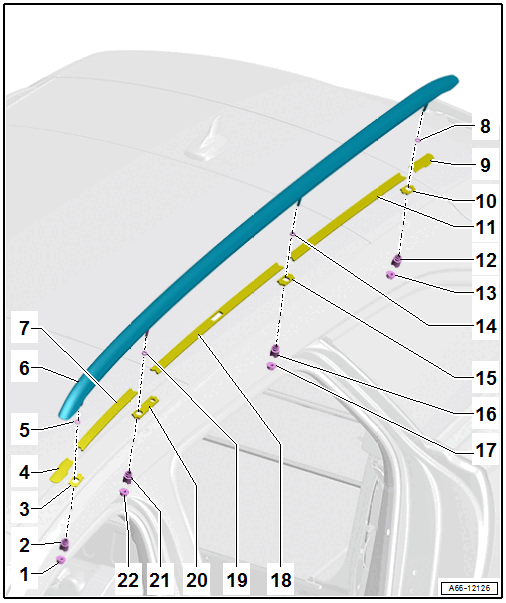

Fig 1: Exploded View Of Roof Railing

Courtesy of AUDI OF AMERICA, LLC

Nut
- Insert with locking fluid. Refer to the Electronic Parts Information (ETKA).
- Tightening specification and sequence. Refer to Fig 2.
Lifter
- Removing and installing. Refer to LIFTER, REMOVING AND INSTALLING .
- Insert with locking fluid. Refer to the Electronic Parts Information (ETKA).
- 0.4 Nm
Seal
Seal
O-Ring
Roof Railing
- Removing and installing. Refer to ROOF RAILING, REMOVING AND INSTALLING .
Seal
O-Ring
Seal
Seal
Seal
Lifter
- Removing and installing. Refer to LIFTER, REMOVING AND INSTALLING .
- Insert with locking fluid. Refer to the Electronic Parts Information (ETKA).
- 0.4 Nm
Nut
- Insert with locking fluid. Refer to the Electronic Parts Information (ETKA).
- Tightening specification and sequence. Refer to Fig 2.
O-Ring
Seal
Lifter
- Removing and installing. Refer to LIFTER, REMOVING AND INSTALLING .
- Insert with locking fluid. Refer to the Electronic Parts Information (ETKA).
- 0.4 Nm
Nut
- Insert with locking fluid. Refer to the Electronic Parts Information (ETKA).
- Tightening specification and sequence. Refer to Fig 2.
Seal
O-Ring
Seal
Lifter
- Removing and installing. Refer to LIFTER, REMOVING AND INSTALLING .
- Insert with locking fluid. Refer to the Electronic Parts Information (ETKA).
- 0.4 Nm
Nut
- Insert with locking fluid. Refer to the Electronic Parts Information (ETKA).
- Tightening specification and sequence. Refer to Fig 2.

Roof Railing - Tightening Specification and Sequence

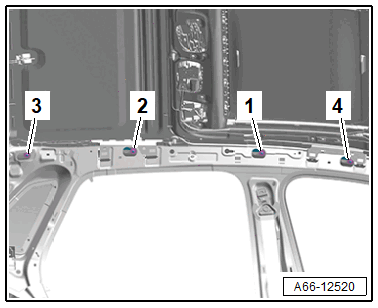

Fig 2: Roof Railing - Tightening Specification and Sequence

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the nuts to 10 Nm in the sequence -1 through 4-.
