License Plate Holder, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the license plate.

-- Remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

-- Release the retainers -arrows-.

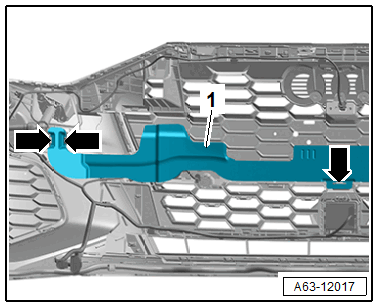

GWWA63-12017Courtesy of AUDI OF AMERICA, LLC

-- Remove the molded foam part -1-.

-- Push the rivet nuts -2 and 6- outward.

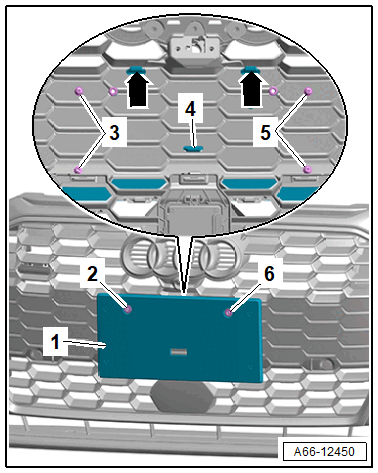

GWWA66-12450Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -3 and 5-.

-- Release the retainer -4-.

-- Pivot the bottom of the license plate holder -1- downward and disengage the retainer -arrows- out of the honeycomb radiator grille.

-- Remove the license plate holder.
