Wheel Housing Extension, Removing And Installing, Front: Installing

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal while noting the following:

-- Clean the painted side of the adhesive surface with Cleaning Solution.

-- Remove the protective film from the adhesive tape -2-.

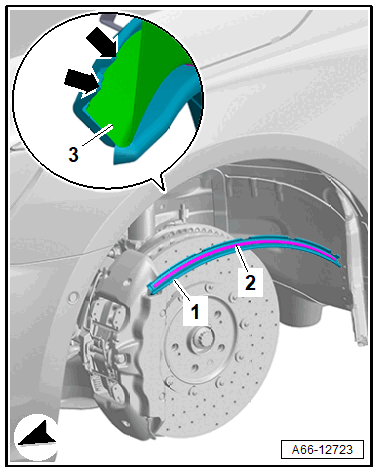

GWWA66-12723Courtesy of AUDI OF AMERICA, LLC

-- Position the wheel housing extension -1- all the way onto the fender edge -3- using the positioning corrugations -arrows-.

-- Press the wheel housing extension to the fender by hand and secure with clamps.
