Side Sill Trim Panel Mount, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the side sill trim panel. Refer to SIDE SILL TRIM PANEL, REMOVING AND INSTALLING, RS3 .

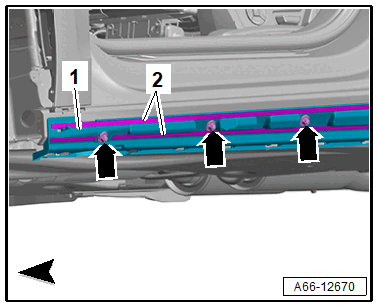

-- Remove the nuts -arrows-.

GWWA66-12670Courtesy of AUDI OF AMERICA, LLC

-- Carefully warm the adhesives -2- using the Wiring Harness Repair Set - Hot Air Blower:VAS1978/14A  .

-- Pry off the mount -1- using the Removal Wedge:T40233  .
