Overview - Wheel Housing Extensions

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

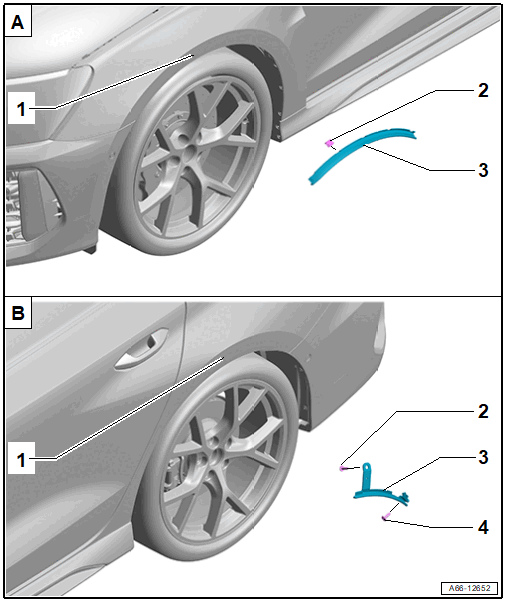

GWWA66-12652Courtesy of AUDI OF AMERICA, LLC
  1. A -

    Front Wheel Housing Extension

  2. 1 -

    Fender

  3. 2 -

    Clip

    • Quantity: 5
  4. 3 -

    Wheel Housing Extension

  5. B -

    Rear Wheel Housing Extension

  6. 1 -

    Side Panel

  7. 2 -

    Bolt

    • 2 Nm
  8. 3 -

    Wheel Housing Extension

  9. 4 -

    Bolt

    • 2 Nm
