Fender Trim, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the end plate. Refer to END PANEL, REMOVING AND INSTALLING .

-- Remove the side sill trim panel. Refer to SIDE SILL TRIM PANEL, REMOVING AND INSTALLING, RS3 .

-- Remove the bolts -arrows-.

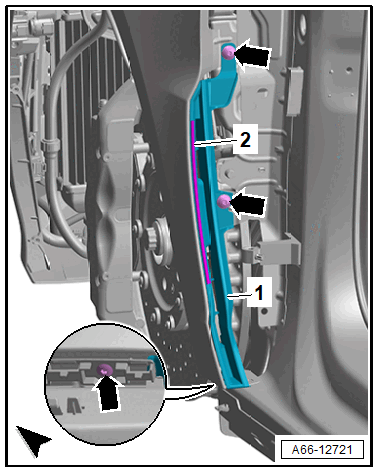

GWWA66-12721Courtesy of AUDI OF AMERICA, LLC

-- Carefully warm the adhesive -2- using the Wiring Harness Repair Set - Hot Air Blower:VAS1978/14A  .

-- Remove trim -1-.
