Fender Trim, Removing And Installing: Installing

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal while noting the following:

-- Clean the painted side of the adhesive surface with Cleaning Solution.

-- Remove the protective film from the adhesive tape -2-.

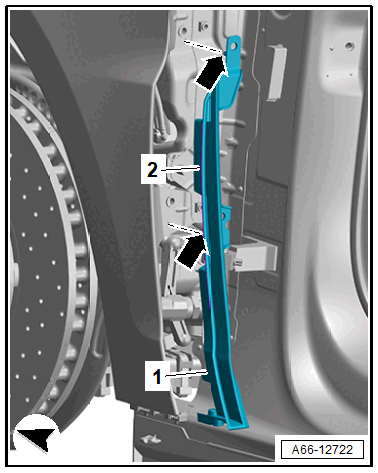

GWWA66-12722Courtesy of AUDI OF AMERICA, LLC

-- Position the trim -1- above the pins -arrows- at the fender.

-- Press the trim to the fender by hand.
