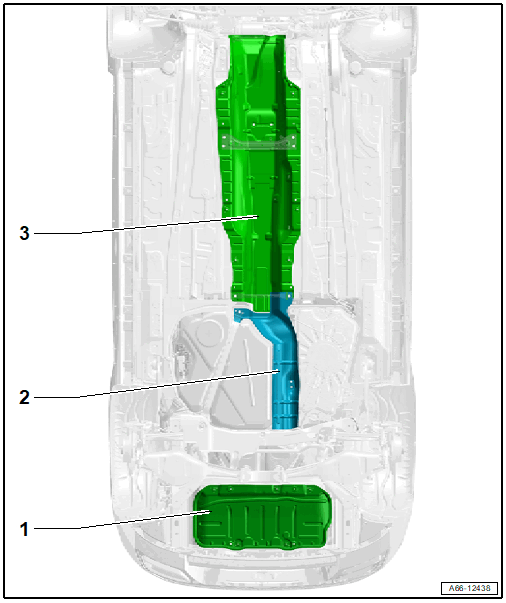

Component Location Overview - Heat Shields, Fwd
WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.
- Heat Shield
- For the rear muffler
- Secured with lock washers
- Heat Shield
- For the exhaust system
- Equipped on some models
- Secured with lock washer and bolts
- Bolts: 10 Nm
- Heat Shield
- Front
- Secured with lock washers
- Removing and installing. Refer to FRONT HEAT SHIELD, REMOVING AND INSTALLING .
