Main Fuse Panel On Battery, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Audi S3, 2023 Audi RS 3, 2023 Audi A3 Quattro, and 2023 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

-- Lift the luggage compartment floor cover.

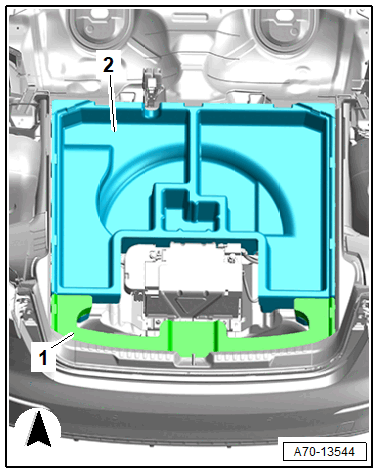

-- Remove the support -1- and storage compartment -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the ground cable from the Battery A. Refer to Battery -A-, DISCONNECTING AND CONNECTING, IN LUGGAGE COMPARTMENT (0K0) .

-- Open the cover -2- over the battery positive terminal.

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the nut -3- several turns.

-- Slightly push down the main fuse panel -1-, this will release the retainer -5-.

-- Afterwards pivot the main fuse panel to the side until the guide -6- is free.

-- Remove the battery ground cable terminal clamp -4- of the positive wire from the battery terminal.

-- Release the latches -arrow- and open the flap -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the wires -2, 3 and 8- from the main fuse panel -4-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nut -6- and bolt -5-, then remove the wires -1 and 7-.

-- Release the latches and open the flap -3- -arrow-.

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -1- from the cut-off relay -2-.

-- Remove the main fuse panel.
